E-TDA7560

E-TDA7560 Overview

Product belongs to the TDA7560 series. This product is categorized as Audio Amplifiers Type: Class AB Tube is the packaging method for this product Through Hole Mounting-Style FLEXIWATT-25 V The Single for this product is CMOS/TTL. Operational temperature range: - Through Hole mounting type Output-Type: 4-Channel (Quad) Number of channels: 4 Channel Voltage Supply Range: 8 V ~ 18 V Supplier device package: 25-Flexiwatt (Vertical) Maximum Output Power of 80W x 4 @ 2 Ohm for 1 channel The device offers a 26 dB of 26dB. Class-AB is the class of this product. Maximum operating temperature of + 150 C Output current: 10000 mA Maximum supply voltage of 18 V This product has a 0.015 % 0.006 % for clear and precise audio. 4 Ohm audio load impedance Single supply type

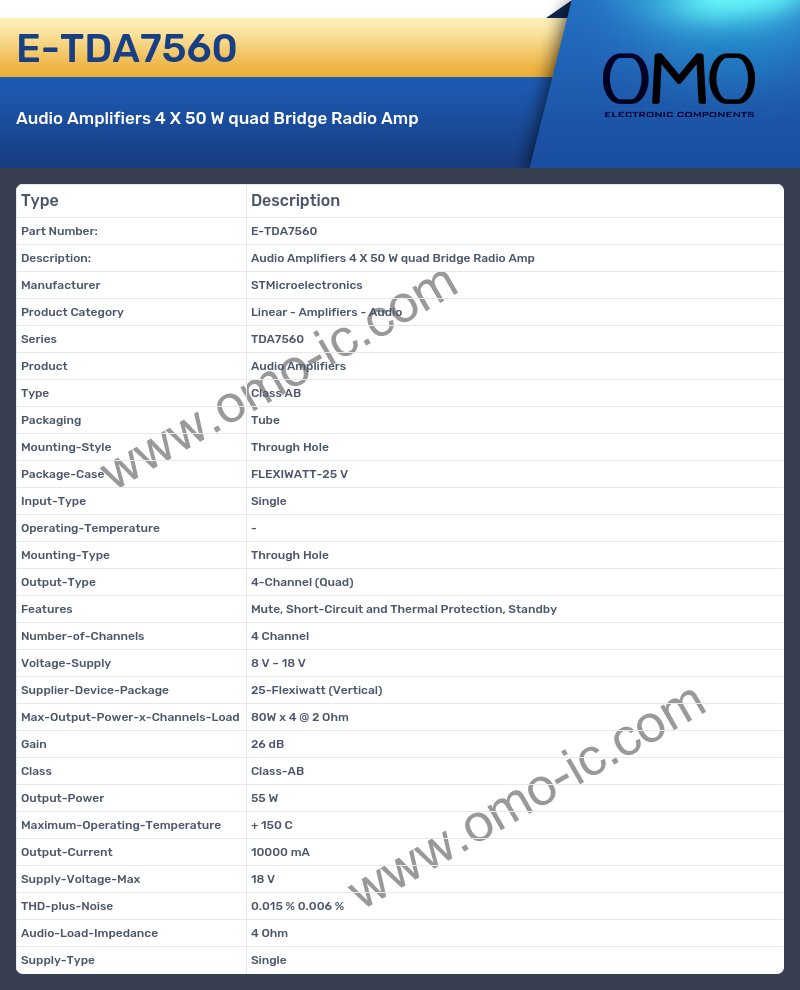

E-TDA7560 Image

E-TDA7560 Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Amplifiers - Audio
• Series TDA7560
• Product Audio Amplifiers
• Type Class AB
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case FLEXIWATT-25 V
• Input-Type Single
• Operating-Temperature -
• Mounting-Type Through Hole
• Output-Type 4-Channel (Quad)
• Features Mute, Short-Circuit and Thermal Protection, Standby
• Number-of-Channels 4 Channel
• Voltage-Supply 8 V ~ 18 V
• Supplier-Device-Package 25-Flexiwatt (Vertical)
• Max-Output-Power-x-Channels-Load 80W x 4 @ 2 Ohm
• Gain 26 dB
• Class Class-AB
• Output-Power 55 W
• Maximum-Operating-Temperature + 150 C
• Output-Current 10000 mA
• Supply-Voltage-Max 18 V
• THD-plus-Noise 0.015 % 0.006 %
• Audio-Load-Impedance 4 Ohm
• Supply-Type Single
