EMIF04-EAR02M8

EMIF04-EAR02M8 Overview

Product belongs to the EMIF series. Type: Low Pass Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.026" (0.65mm). 8-UFDFN Exposed Pad LC (Pi), RC (Pi) is the technology used. Operational temperature range: -30°C ~ 125°C Surface Mount mounting type Rated voltage range of - Versatile Audio applications for maximum usability Number of channels: 4 Filter order is 2nd, 3rd -30dB @ 900MHz of 10dB for superior noise reduction - Ohms Resistance Channel There are two Values: R = 68 Ohms, C = 76pF, 105pF, L = 1.5nH. ESD-Protection": " Yes

EMIF04-EAR02M8 Image

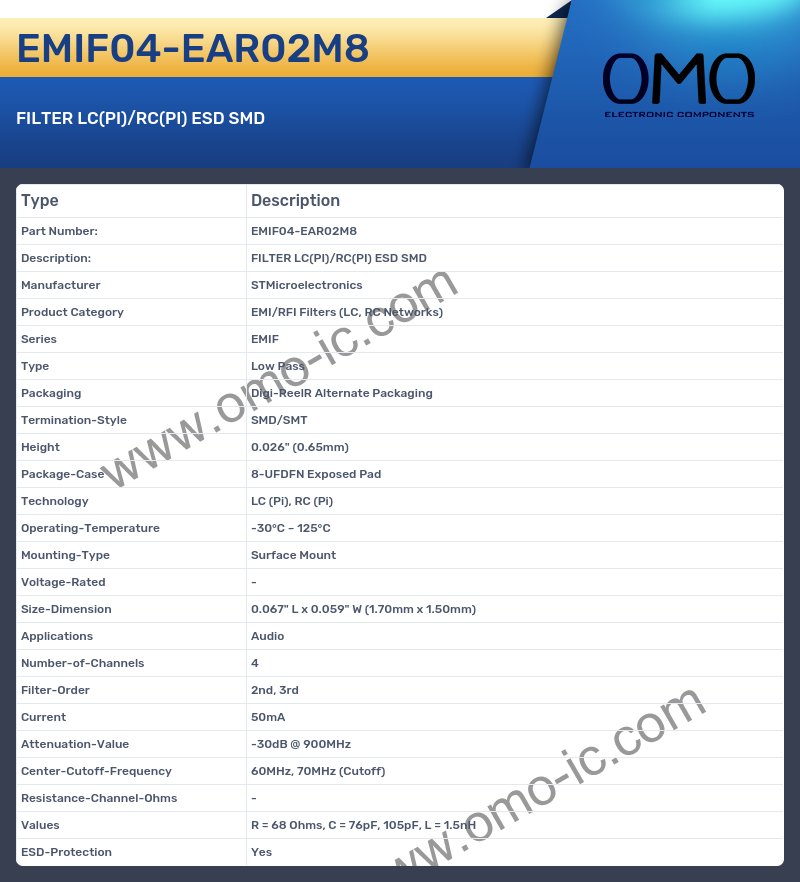

EMIF04-EAR02M8 Specifications

• Manufacturer STMicroelectronics
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series EMIF
• Type Low Pass
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Height 0.026" (0.65mm)
• Package-Case 8-UFDFN Exposed Pad
• Technology LC (Pi), RC (Pi)
• Operating-Temperature -30°C ~ 125°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.067" L x 0.059" W (1.70mm x 1.50mm)
• Applications Audio
• Number-of-Channels 4
• Filter-Order 2nd, 3rd
• Current 50mA
• Attenuation-Value -30dB @ 900MHz
• Center-Cutoff-Frequency 60MHz, 70MHz (Cutoff)
• Resistance-Channel-Ohms -
• Values R = 68 Ohms, C = 76pF, 105pF, L = 1.5nH
• ESD-Protection Yes
