ESDA12-1K

ESDA12-1K Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. SC-79, SOD-523 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 1 Channel Supplier device package: SOD-523 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 10V. The Voltage-Breakdown-Min is 12V. No Power-Line-Protection 150pF @ 1MHz Capacitance-Frequency Power-off control: 450 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 12 V Clamping-Voltage: 28 V The Cd-Diode-Capacitance is 150 pF 10 V working voltage Polarity: Unidirectional 16 A of IPP, Peak Pulse, and Current 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap

ESDA12-1K Image

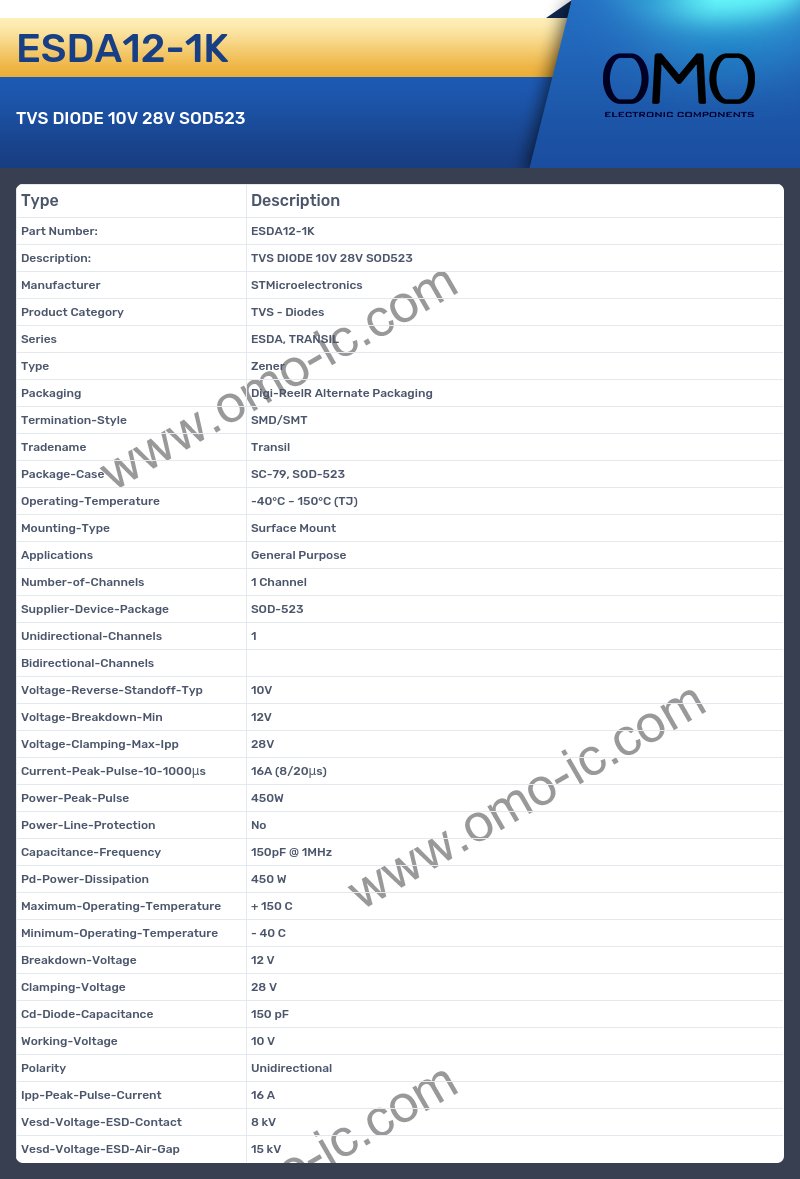

ESDA12-1K Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case SC-79, SOD-523
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOD-523
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 10V
• Voltage-Breakdown-Min 12V
• Voltage-Clamping-Max-Ipp 28V
• Current-Peak-Pulse-10-1000μs 16A (8/20μs)
• Power-Peak-Pulse 450W
• Power-Line-Protection No
• Capacitance-Frequency 150pF @ 1MHz
• Pd-Power-Dissipation 450 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 12 V
• Clamping-Voltage 28 V
• Cd-Diode-Capacitance 150 pF
• Working-Voltage 10 V
• Polarity Unidirectional
• Ipp-Peak-Pulse-Current 16 A
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
