ESDA6V1-5M6

ESDA6V1-5M6 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. The Height of the product is 0.55 mm. 1.45 mm length of the product The 1 mm is at most 7.6 mm. 6-UFDFN Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 5 Channel Supplier device package: 6-μQFN (1.45x1.0) - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 6.1V. No Power-Line-Protection 70pF @ 1MHz Capacitance-Frequency Power-off control: 100 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 6.1 V Clamping-Voltage: 3 V 8 A Peak Surge Current The Cd-Diode-Capacitance is 70 pF 3 V working voltage Polarity: Unidirectional

ESDA6V1-5M6 Image

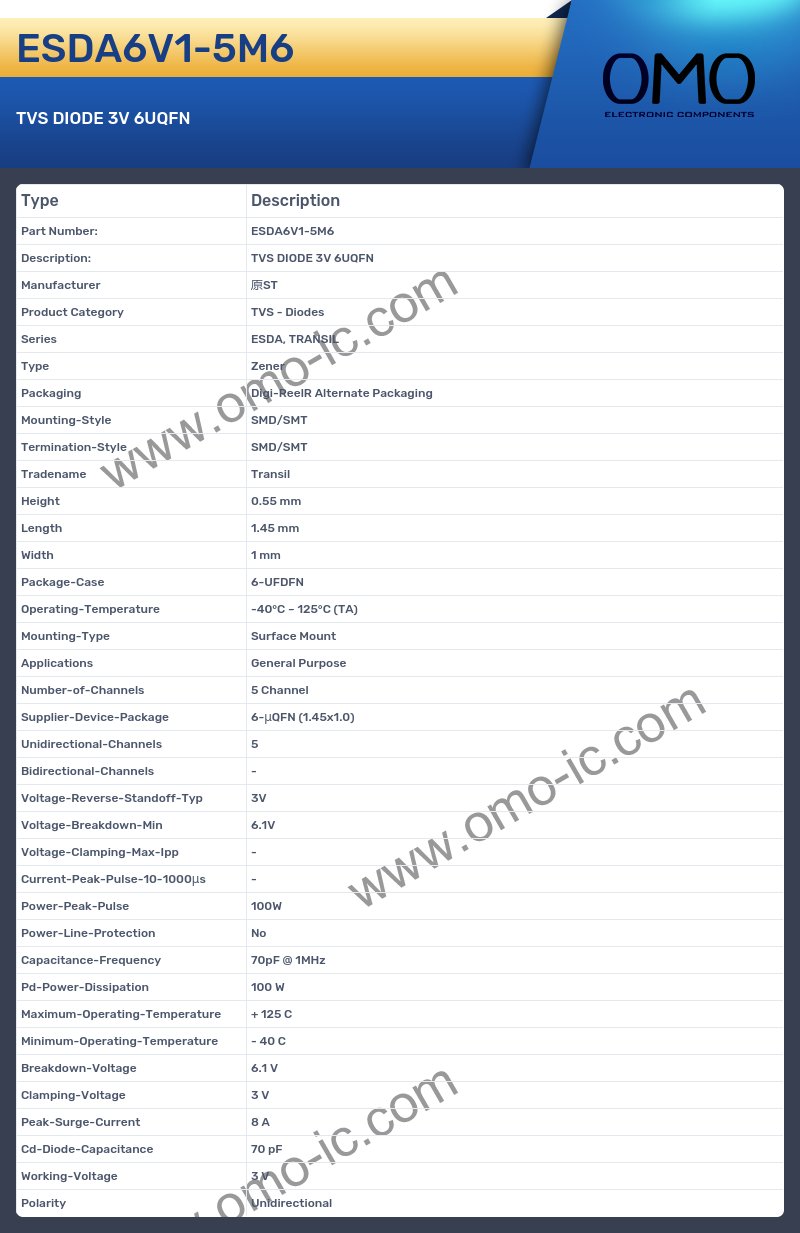

ESDA6V1-5M6 Specifications

• Manufacturer 原ST
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Height 0.55 mm
• Length 1.45 mm
• Width 1 mm
• Package-Case 6-UFDFN
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 5 Channel
• Supplier-Device-Package 6-μQFN (1.45x1.0)
• Unidirectional-Channels 5
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 6.1V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 100W
• Power-Line-Protection No
• Capacitance-Frequency 70pF @ 1MHz
• Pd-Power-Dissipation 100 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 6.1 V
• Clamping-Voltage 3 V
• Peak-Surge-Current 8 A
• Cd-Diode-Capacitance 70 pF
• Working-Voltage 3 V
• Polarity Unidirectional
