ESDALC5-1BT2

ESDALC5-1BT2 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 55 C to + 150 C operating temperature range for diverse applications The Height of the product is 0.3 mm. 0.6 mm length of the product The 1 mm is at most 7.6 mm. SOD-882 Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: SOD-882T 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5V. The Voltage-Breakdown-Min is 5.8V. No Power-Line-Protection 26pF @ 1MHz Capacitance-Frequency Power-off control: 150 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Breakdown-Voltage: 5 V 9 A Peak Surge Current Polarity: Bidirectional

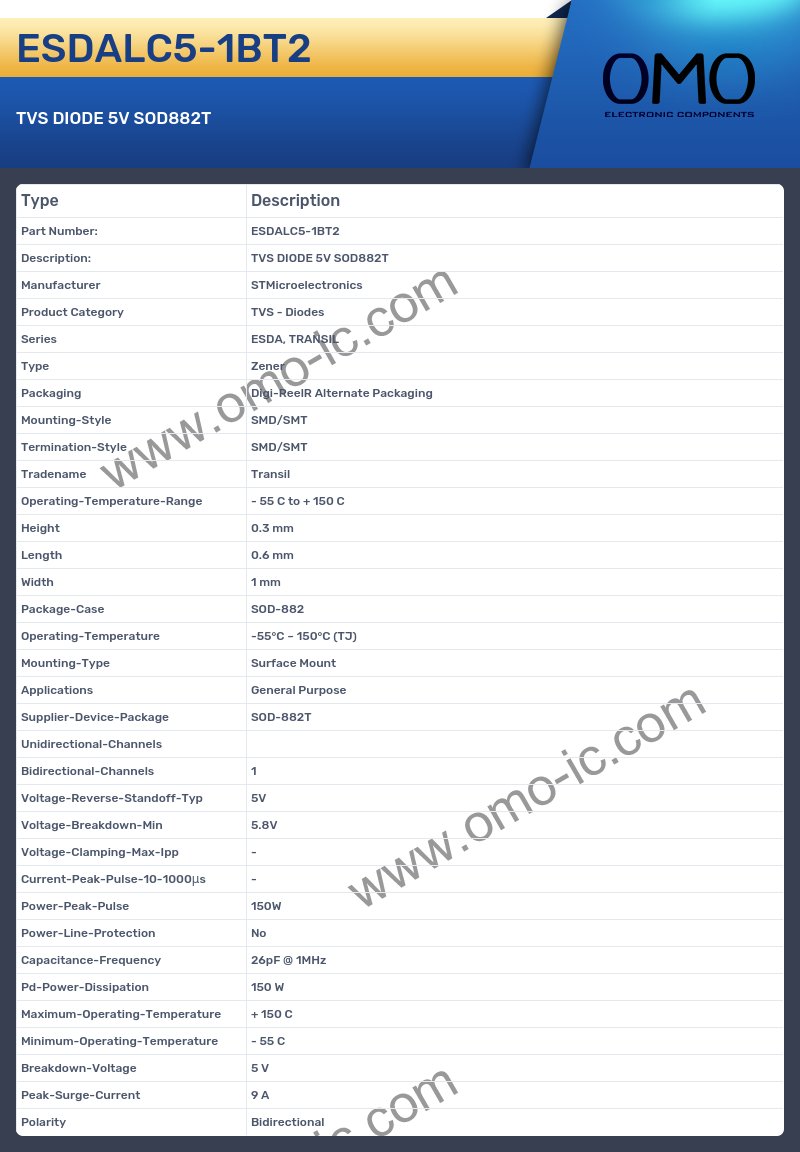

ESDALC5-1BT2 Image

ESDALC5-1BT2 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 55 C to + 150 C
• Height 0.3 mm
• Length 0.6 mm
• Width 1 mm
• Package-Case SOD-882
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package SOD-882T
• Unidirectional-Channels
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 5V
• Voltage-Breakdown-Min 5.8V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 150W
• Power-Line-Protection No
• Capacitance-Frequency 26pF @ 1MHz
• Pd-Power-Dissipation 150 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 5 V
• Peak-Surge-Current 9 A
• Polarity Bidirectional
