ESDCAN02-2BWY Overview

Product belongs to the Automotive, AEC-Q101, ESDCAY, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 1.1 mm. 2 mm length of the product The 0.65 mm is at most 7.6 mm. SC-70, SOT-323 Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Versatile Automotive, CAN applications for maximum usability Supplier device package: SOT-323-3 2 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 26.5V (Max). The Voltage-Breakdown-Min is 28.5V. No Power-Line-Protection 3pF @ 1MHz Capacitance-Frequency Power-off control: 250 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Breakdown-Voltage: 28.5 V Clamping-Voltage: 44 V 3.7 A Peak Surge Current 26.5 V working voltage Polarity: Bidirectional

ESDCAN02-2BWY Image

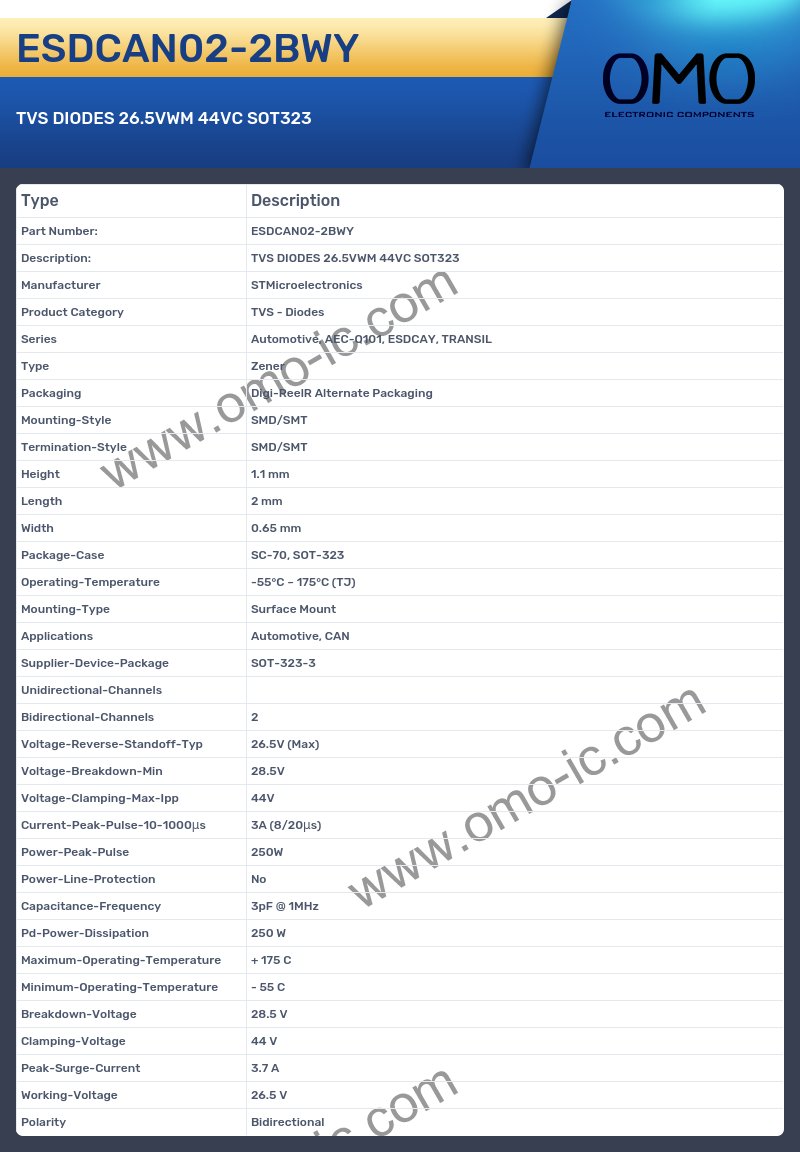

ESDCAN02-2BWY Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, ESDCAY, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Height 1.1 mm
• Length 2 mm
• Width 0.65 mm
• Package-Case SC-70, SOT-323
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive, CAN
• Supplier-Device-Package SOT-323-3
• Unidirectional-Channels
• Bidirectional-Channels 2
• Voltage-Reverse-Standoff-Typ 26.5V (Max)
• Voltage-Breakdown-Min 28.5V
• Voltage-Clamping-Max-Ipp 44V
• Current-Peak-Pulse-10-1000μs 3A (8/20μs)
• Power-Peak-Pulse 250W
• Power-Line-Protection No
• Capacitance-Frequency 3pF @ 1MHz
• Pd-Power-Dissipation 250 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 28.5 V
• Clamping-Voltage 44 V
• Peak-Surge-Current 3.7 A
• Working-Voltage 26.5 V
• Polarity Bidirectional
