HCF4013BEY

HCF4013BEY Overview

Product belongs to the 4000B series. Tube is the packaging method for this product Product Obsolete Product function is Set(Preset) and Reset. Type: D-Type Output Type is Differential 2-elemented 1 Number of Bits per Element The 24MHz Clock Frequency; The Maximum Propagation Delay at V and Maximum CL is 90ns @ 15V, 50pF. Positive Edge triggered 5.2mA, 5.2mA Current Output High and Low; The supply voltage is set to 3 V ~ 20 V. The 20A Current - Quiescent (Iq) 5pF Input Capacitance Operating Temperature of -55°C ~ 125°C (TA) This product has a Through Hole. Package type is 14-DIP (0.300", 7.62mm) 4013 is the base part number.

HCF4013BEY Image

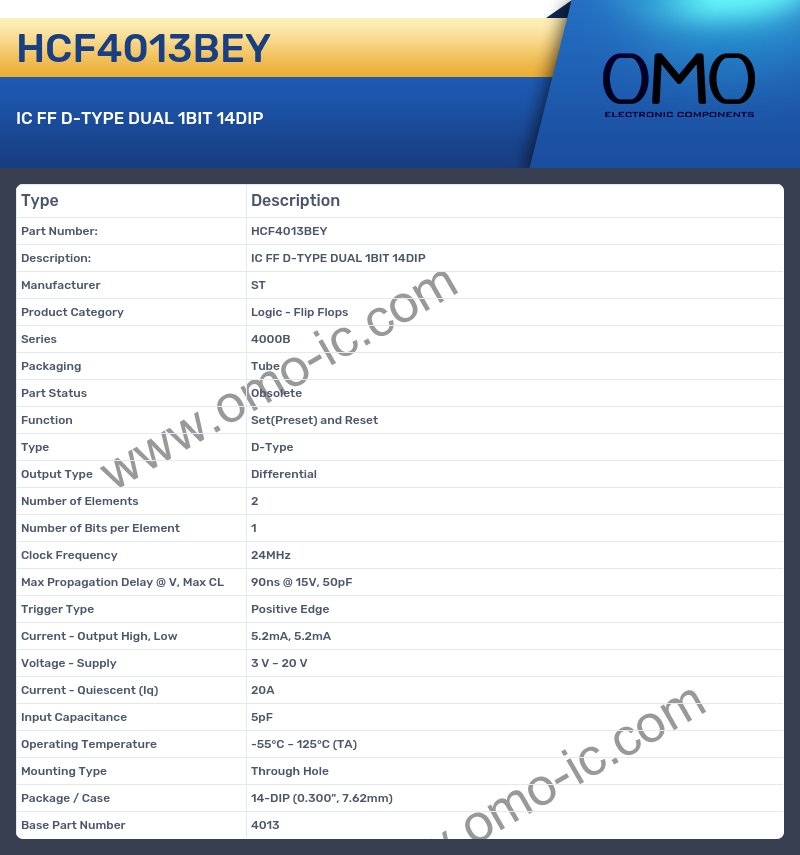

HCF4013BEY Specifications

• Manufacturer ST
• Product Category Logic - Flip Flops
• Series 4000B
• Packaging Tube
• Part Status Obsolete
• Function Set(Preset) and Reset
• Type D-Type
• Output Type Differential
• Number of Elements 2
• Number of Bits per Element 1
• Clock Frequency 24MHz
• Max Propagation Delay @ V, Max CL 90ns @ 15V, 50pF
• Trigger Type Positive Edge
• Current - Output High, Low 5.2mA, 5.2mA
• Voltage - Supply 3 V ~ 20 V
• Current - Quiescent (Iq) 20A
• Input Capacitance 5pF
• Operating Temperature -55°C ~ 125°C (TA)
• Mounting Type Through Hole
• Package / Case 14-DIP (0.300", 7.62mm)
• Base Part Number 4013
