ISO5451DW

ISO5451DW Overview

Product belongs to the ISO5451 series. This product is categorized as IGBT MOSFET Gate Drivers Type: Isolated Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 1 Voltage Supply Range: 15 V ~ 30 V Supplier device package: 16-SOIC Configuration Inverting Non-Inverting Number-of-Outputs: 1 Output The product's 2.7A, 5.5A is 4A. This product is designed with 5700Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Power-off control: Shutdown Minimum 50kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 110ns, 110ns The minimum pulse width distortion is -. Power-off control: 700 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 15 V to 30 V This product has a 20 ns of 16 ns. This product has a 20 ns of 16 ns. Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V Number-of-Drivers: 1 Driver

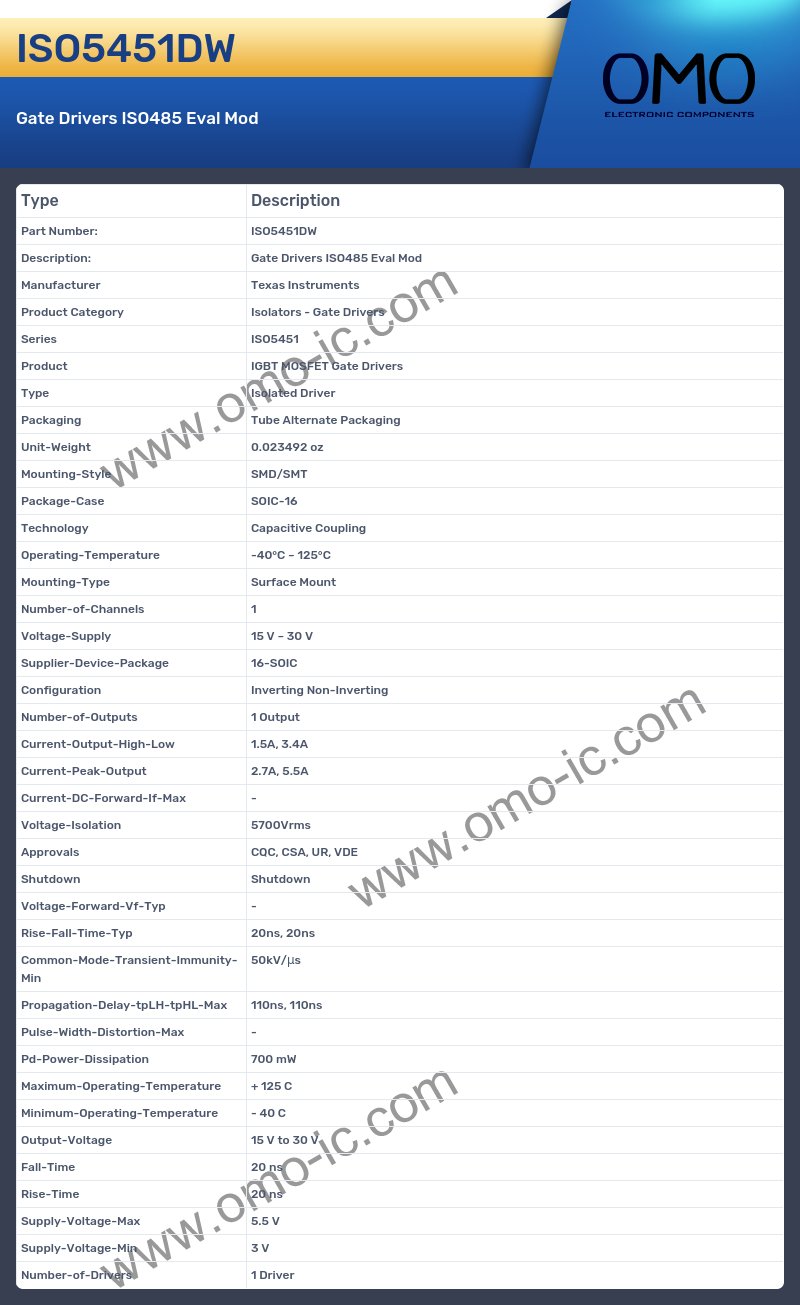

ISO5451DW Image

ISO5451DW Specifications

• Manufacturer Texas Instruments
• Product Category Isolators - Gate Drivers
• Series ISO5451
• Product IGBT MOSFET Gate Drivers
• Type Isolated Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 1
• Voltage-Supply 15 V ~ 30 V
• Supplier-Device-Package 16-SOIC
• Configuration Inverting Non-Inverting
• Number-of-Outputs 1 Output
• Current-Output-High-Low 1.5A, 3.4A
• Current-Peak-Output 2.7A, 5.5A
• Current-DC-Forward-If-Max -
• Voltage-Isolation 5700Vrms
• Approvals CQC, CSA, UR, VDE
• Shutdown Shutdown
• Voltage-Forward-Vf-Typ -
• Rise-Fall-Time-Typ 20ns, 20ns
• Common-Mode-Transient-Immunity-Min 50kV/μs
• Propagation-Delay-tpLH-tpHL-Max 110ns, 110ns
• Pulse-Width-Distortion-Max -
• Pd-Power-Dissipation 700 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 15 V to 30 V
• Fall-Time 20 ns
• Rise-Time 20 ns
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 1 Driver
