ISO7221CHD

ISO7221CHD Overview

Product belongs to the - series. Type: General Purpose Bulk is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) Capacitive Coupling is the technology used. Operational temperature range: -55°C ~ 175°C Number of channels: 2 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 8-SOIC This product's Unidirectional This product is designed with 4000Vpk voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/1/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 43ns, 43ns The minimum pulse width distortion is 2ns.

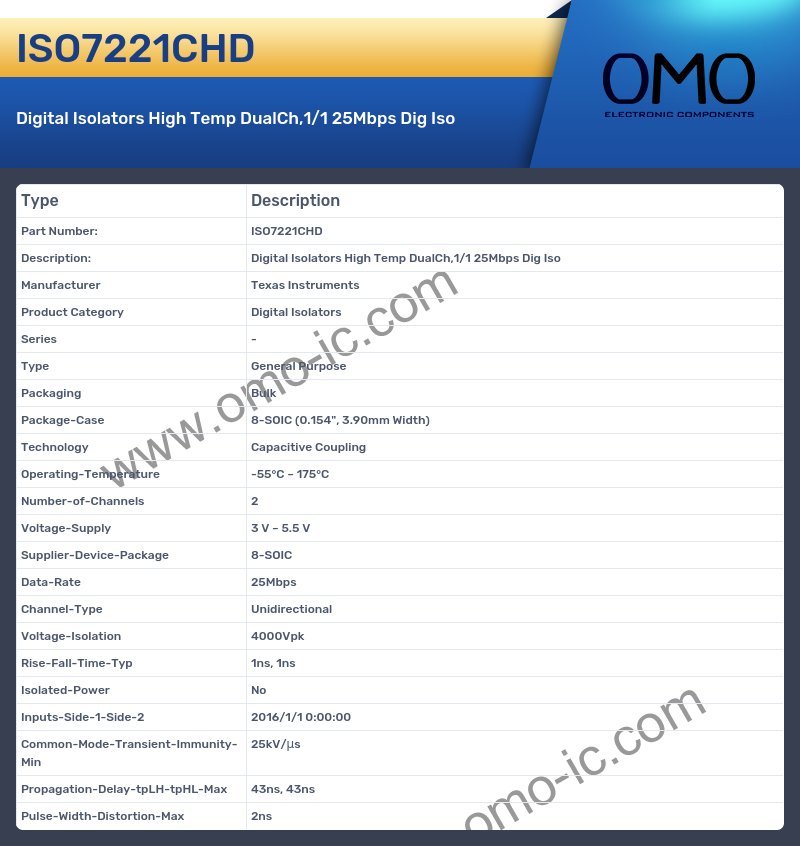

ISO7221CHD Image

ISO7221CHD Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series -
• Type General Purpose
• Packaging Bulk
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Technology Capacitive Coupling
• Operating-Temperature -55°C ~ 175°C
• Number-of-Channels 2
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 25Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 4000Vpk
• Rise-Fall-Time-Typ 1ns, 1ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/1/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 43ns, 43ns
• Pulse-Width-Distortion-Max 2ns
