ISO7230CDWR

ISO7230CDWR Overview

Product belongs to the ISO7230C series. This product is categorized as Digital Isolators Type: General Purpose Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.014829 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 3 Voltage Supply Range: 3.15 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. Power-off control: No Shutdown This product is designed with No isolated power for maximum safety and reliability. The product has 2000/3/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 42ns, 42ns The minimum pulse width distortion is 2.5ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 17 mA is 92 nA. Isolation voltage of 2.8 kV Maximum supply voltage of 5.5 V Minimum supply voltage is 3.15 V 56 ns is 23 microseconds. This product features 3 Channel Forward-Channels for simple connectivity. Rise time max: 2 ns (Typ) The product has 0 Channel for reverse communication.

ISO7230CDWR Image

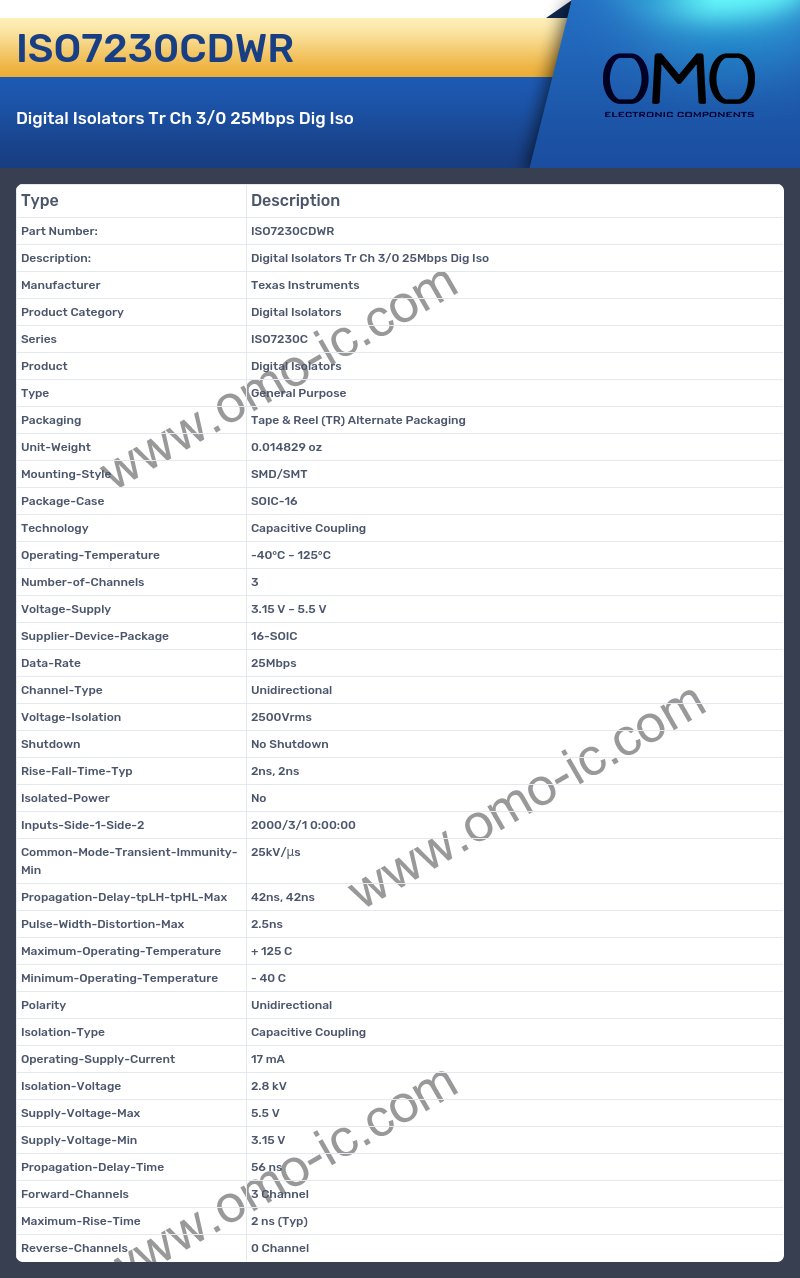

ISO7230CDWR Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO7230C
• Product Digital Isolators
• Type General Purpose
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.014829 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 3
• Voltage-Supply 3.15 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 25Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Shutdown No Shutdown
• Rise-Fall-Time-Typ 2ns, 2ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/3/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 42ns, 42ns
• Pulse-Width-Distortion-Max 2.5ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 17 mA
• Isolation-Voltage 2.8 kV
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3.15 V
• Propagation-Delay-Time 56 ns
• Forward-Channels 3 Channel
• Maximum-Rise-Time 2 ns (Typ)
• Reverse-Channels 0 Channel
