ISO7342CDW

ISO7342CDW Overview

Product belongs to the ISO7342C series. Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 3000Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/2 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 58ns, 58ns The minimum pulse width distortion is 4ns. Power-off control: 111 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Capacitive Coupling is the isolation type specified for this product. 6.4 mA is 92 nA. Isolation voltage of 3000 Vrms Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V 31 ns is 23 microseconds. This product features 2 Channel Forward-Channels for simple connectivity. The product has 2 Channel for reverse communication.

ISO7342CDW Image

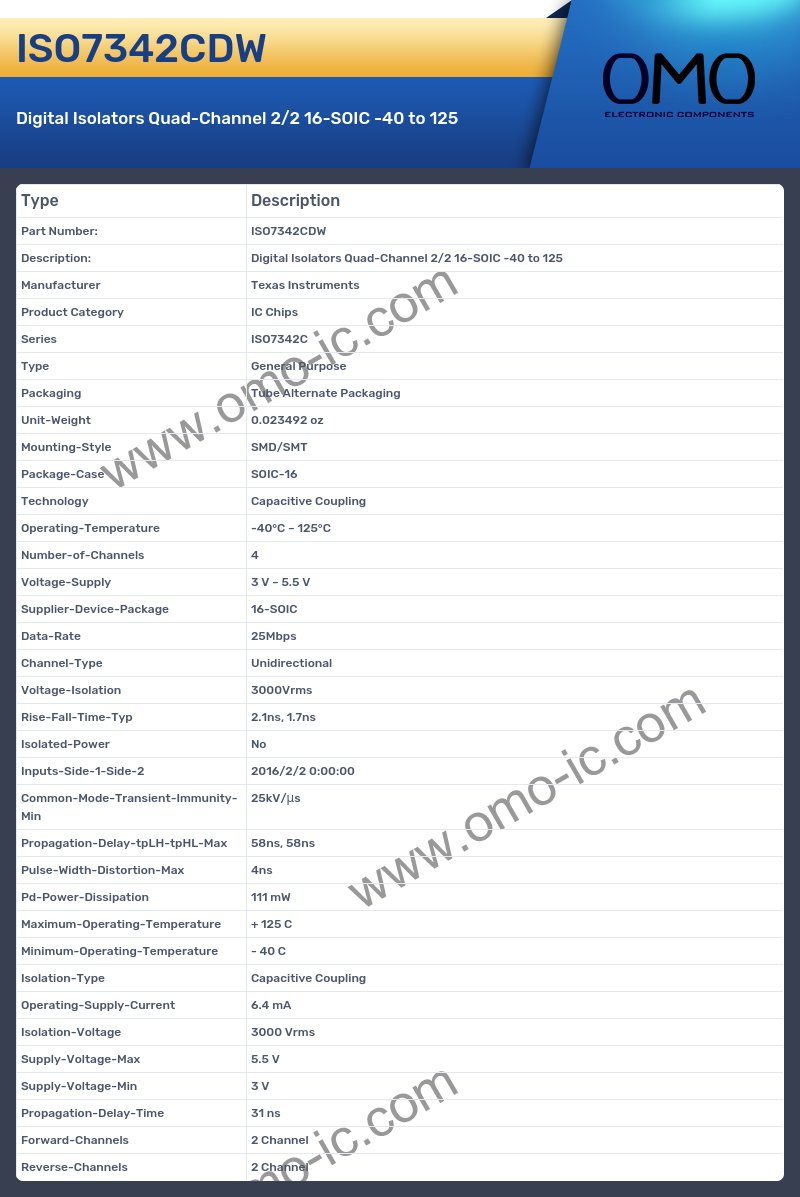

ISO7342CDW Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series ISO7342C
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 4
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 25Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 3000Vrms
• Rise-Fall-Time-Typ 2.1ns, 1.7ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/2 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 58ns, 58ns
• Pulse-Width-Distortion-Max 4ns
• Pd-Power-Dissipation 111 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 6.4 mA
• Isolation-Voltage 3000 Vrms
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Time 31 ns
• Forward-Channels 2 Channel
• Reverse-Channels 2 Channel
