L4973D3.3

L4973D3.3 Overview

Product belongs to the L4973 series. Type: Step-Down Tube Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SO-20 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable (Fixed) Product function is Step-Down. Supplier device package: 20-SO Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 100kHz ~ 300kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.5V (3.3V) . The value of No is included as a product attribute. The minimum input voltage is 8V. The 55V. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 50 V 16 mA is 92 nA. Input Voltage Range: 8 V to 55 V Maximum Input Voltage: 55 V Output current: 3.5 A Switching frequency is 300 kHz The product's 8 V is 5.1 V. Minimum supply voltage is 8 V

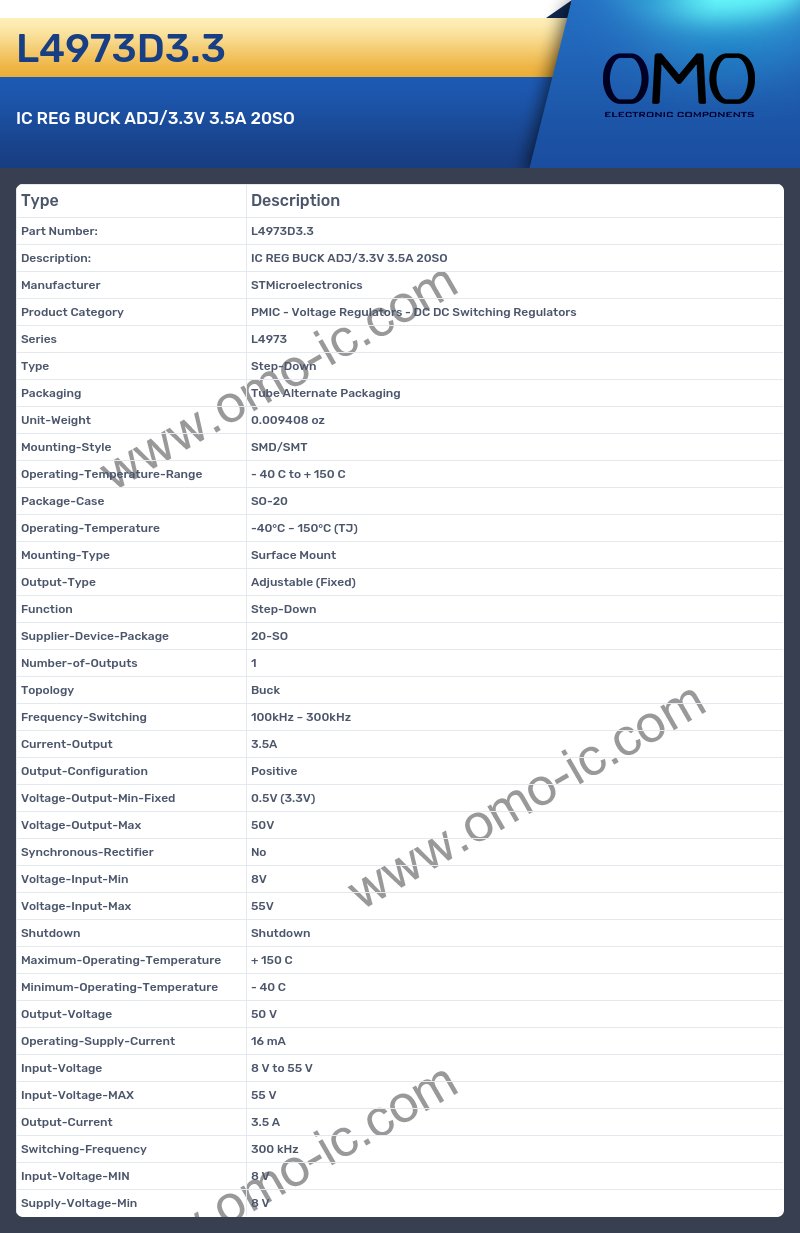

L4973D3.3 Image

L4973D3.3 Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series L4973
• Type Step-Down
• Packaging Tube Alternate Packaging
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SO-20
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable (Fixed)
• Function Step-Down
• Supplier-Device-Package 20-SO
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 100kHz ~ 300kHz
• Current-Output 3.5A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.5V (3.3V)
• Voltage-Output-Max 50V
• Synchronous-Rectifier No
• Voltage-Input-Min 8V
• Voltage-Input-Max 55V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 50 V
• Operating-Supply-Current 16 mA
• Input-Voltage 8 V to 55 V
• Input-Voltage-MAX 55 V
• Output-Current 3.5 A
• Switching-Frequency 300 kHz
• Input-Voltage-MIN 8 V
• Supply-Voltage-Min 8 V
