L6203

L6203 Overview

Product belongs to the L6203 series. Type: Driver Tube is the packaging method for this product Through Hole Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications Multiwatt-11 BCDMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Versatile DC Motors, General Purpose applications for maximum usability Interface: Logic Voltage Supply Range: 12 V ~ 48 V Supplier device package: 11-Multiwatt Current-Output-Channel is 4A The Half Bridge (2). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 300 mOhm. The product's - is 4A. Voltage-Load range is 12 V ~ 48 V. This product operates at a 12 V to 48 V supply voltage for reliable performance. 15 mA is 92 nA.

L6203 Image

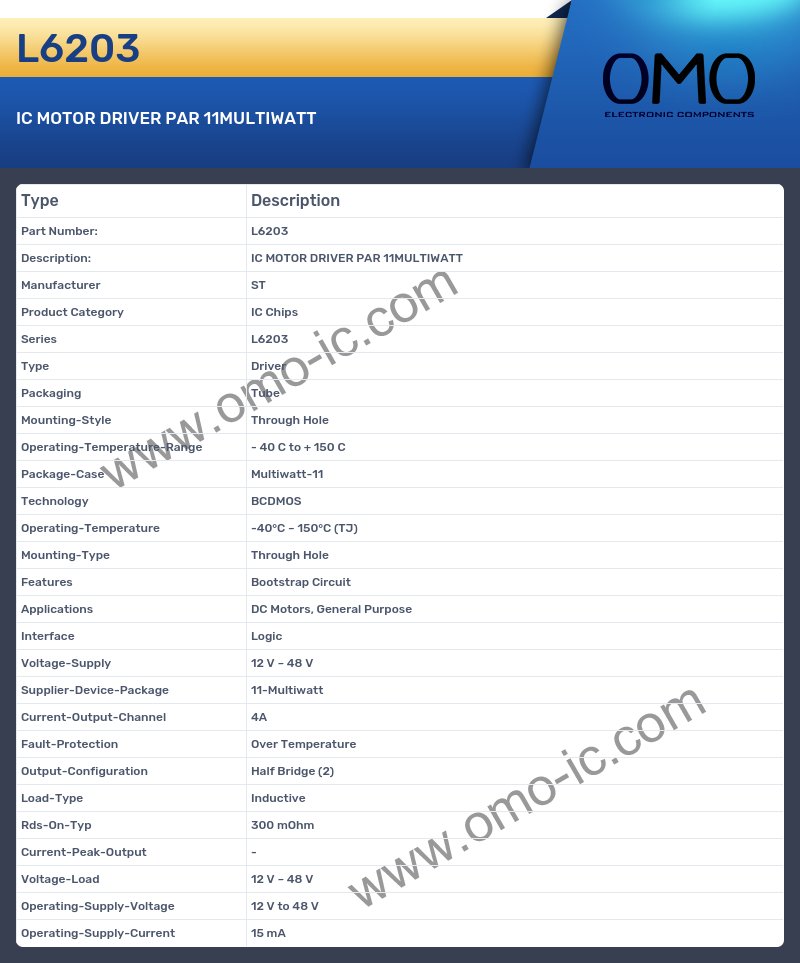

L6203 Specifications

• Manufacturer ST
• Product Category IC Chips
• Series L6203
• Type Driver
• Packaging Tube
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case Multiwatt-11
• Technology BCDMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Features Bootstrap Circuit
• Applications DC Motors, General Purpose
• Interface Logic
• Voltage-Supply 12 V ~ 48 V
• Supplier-Device-Package 11-Multiwatt
• Current-Output-Channel 4A
• Fault-Protection Over Temperature
• Output-Configuration Half Bridge (2)
• Load-Type Inductive
• Rds-On-Typ 300 mOhm
• Current-Peak-Output -
• Voltage-Load 12 V ~ 48 V
• Operating-Supply-Voltage 12 V to 48 V
• Operating-Supply-Current 15 mA
