L6470H

L6470H Overview

Product belongs to the dSPIN series. This product is categorized as Stepper Motor Controllers / Drivers Type: Micro Stepping Motor Driver Tube is the packaging method for this product Weight of 0.004233 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications HTSSOP-28 DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: SPI Voltage Supply Range: 3.3V, 5V Supplier device package: 28-HTSSOP The Half Bridge (4). Voltage-Load range is 8 V ~ 45 V. - motor type is used for high-performance and efficient operation. This product operates at a 8 V to 45 V supply voltage for reliable performance. 500 uA is 92 nA.

L6470H Image

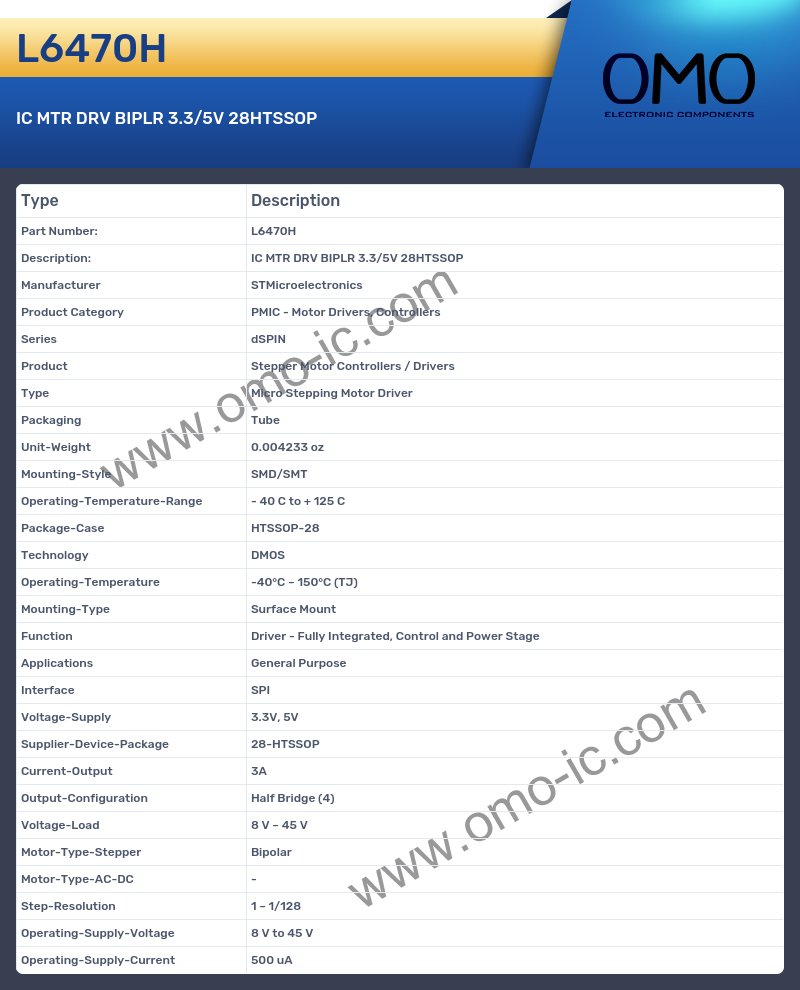

L6470H Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series dSPIN
• Product Stepper Motor Controllers / Drivers
• Type Micro Stepping Motor Driver
• Packaging Tube
• Unit-Weight 0.004233 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case HTSSOP-28
• Technology DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface SPI
• Voltage-Supply 3.3V, 5V
• Supplier-Device-Package 28-HTSSOP
• Current-Output 3A
• Output-Configuration Half Bridge (4)
• Voltage-Load 8 V ~ 45 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC -
• Step-Resolution 1 ~ 1/128
• Operating-Supply-Voltage 8 V to 45 V
• Operating-Supply-Current 500 uA
