L6730B Overview

Product belongs to the L6730B series. Tube Alternate Packaging is the packaging method for this product HTSSOP EP-20 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 20-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 4.5 V ~ 14 V This product features 'Frequency-Switching' at 100kHz ~ 1MHz for optimal performance. The Control-Features include Enable, Frequency Control, Phase Control, Power Good, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 1 The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0.6 V Input Voltage Range: 1.8 V to 14 V

L6730B Image

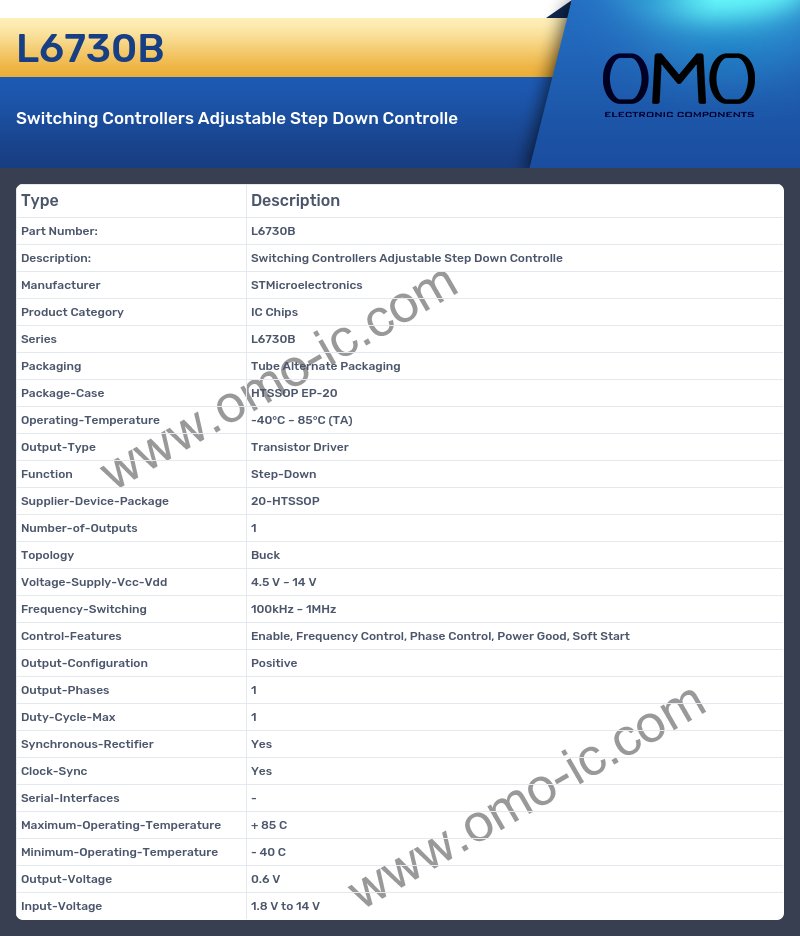

L6730B Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L6730B
• Packaging Tube Alternate Packaging
• Package-Case HTSSOP EP-20
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 20-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 14 V
• Frequency-Switching 100kHz ~ 1MHz
• Control-Features Enable, Frequency Control, Phase Control, Power Good, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 1
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.6 V
• Input-Voltage 1.8 V to 14 V
