L93PI

L93PI Overview

Product belongs to the L93PI series. This product is categorized as Relay Drivers Type: Low Side Tube is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SO-20 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 20-SO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Inverting Non-Inverting Number-of-Outputs: 4 Supply Voltage: Not Required The Low Side. The 1.7 Ohm. Voltage-Load range is 4.5 V ~ 40 V. Our product delivers a 400mA of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Yes Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output current: 15 mA Maximum supply voltage of 40 V Minimum supply voltage is 4.5 V Number-of-Drivers: 4 Driver This product has a Maximum-Turn-Off-Delay-Time of 3 us. 2.5 us maximum turn-on delay time

L93PI Image

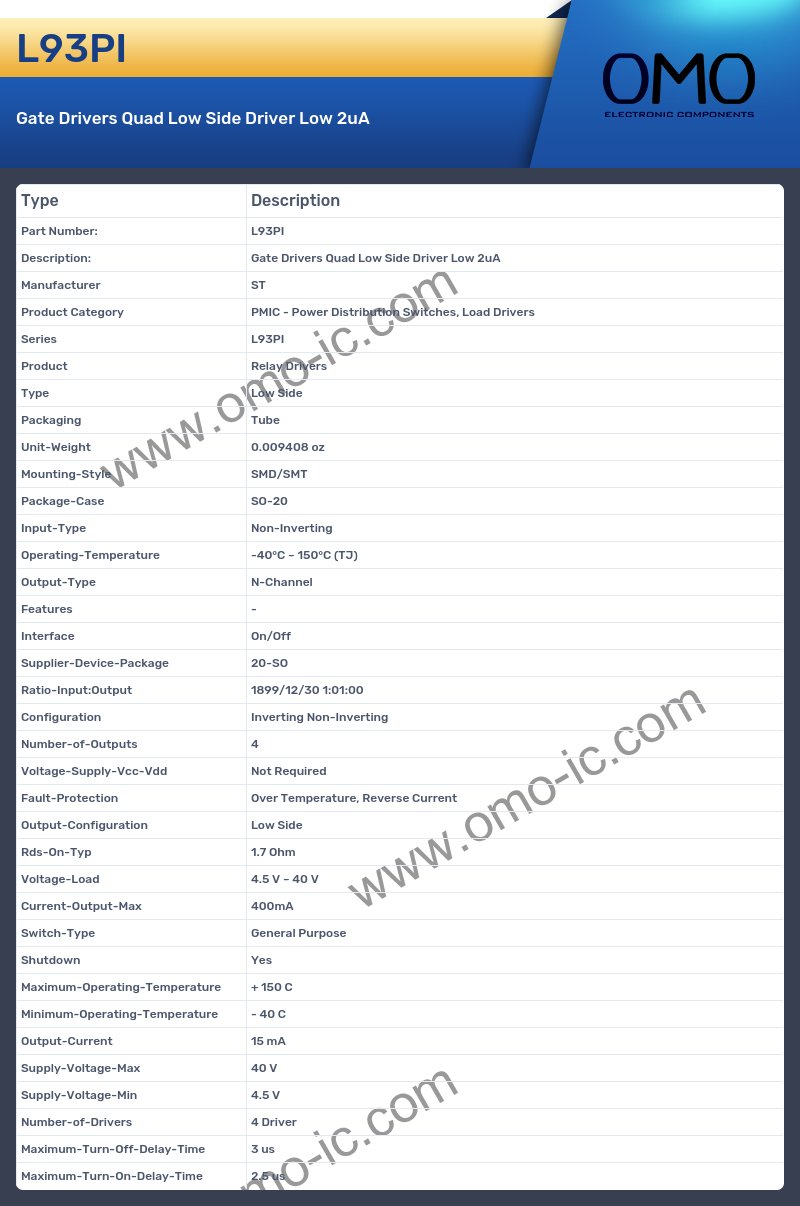

L93PI Specifications

• Manufacturer ST
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series L93PI
• Product Relay Drivers
• Type Low Side
• Packaging Tube
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Package-Case SO-20
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package 20-SO
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Inverting Non-Inverting
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Over Temperature, Reverse Current
• Output-Configuration Low Side
• Rds-On-Typ 1.7 Ohm
• Voltage-Load 4.5 V ~ 40 V
• Current-Output-Max 400mA
• Switch-Type General Purpose
• Shutdown Yes
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 15 mA
• Supply-Voltage-Max 40 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 4 Driver
• Maximum-Turn-Off-Delay-Time 3 us
• Maximum-Turn-On-Delay-Time 2.5 us
