L9805E

L9805E Overview

Product belongs to the - series. Tray is the packaging method for this product 64-BQFP Exposed Pad DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Serial Voltage Supply Range: 6.4 V ~ 18 V Supplier device package: 64-HiQUAD The Half Bridge (2). Voltage-Load range is 6.4 V ~ 18 V. Brushed DC motor type is used for high-performance and efficient operation.

L9805E Image

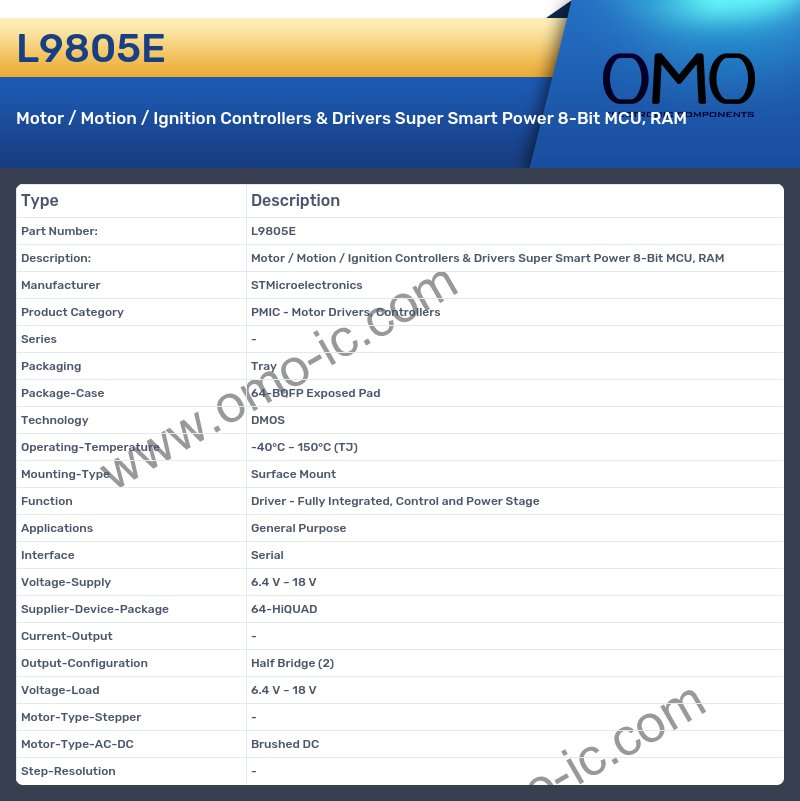

L9805E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series -
• Packaging Tray
• Package-Case 64-BQFP Exposed Pad
• Technology DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Serial
• Voltage-Supply 6.4 V ~ 18 V
• Supplier-Device-Package 64-HiQUAD
• Current-Output -
• Output-Configuration Half Bridge (2)
• Voltage-Load 6.4 V ~ 18 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
