L9947S

L9947S Overview

Product belongs to the - series. Bulk is the packaging method for this product Multiwatt-15 (Vertical, Bent and Staggered Leads) DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile Automotive applications for maximum usability Interface: - Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 15-Multiwatt The Half Bridge (4), High Side (1). Voltage-Load range is 8 V ~ 16 V. Brushed DC motor type is used for high-performance and efficient operation.

L9947S Image

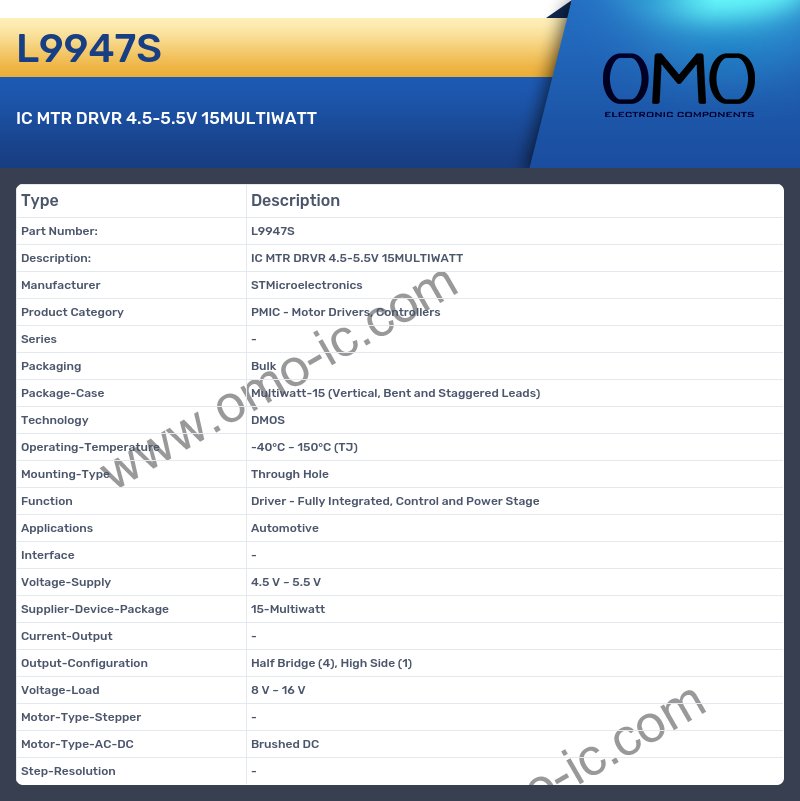

L9947S Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series -
• Packaging Bulk
• Package-Case Multiwatt-15 (Vertical, Bent and Staggered Leads)
• Technology DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Function Driver - Fully Integrated, Control and Power Stage
• Applications Automotive
• Interface -
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 15-Multiwatt
• Current-Output -
• Output-Configuration Half Bridge (4), High Side (1)
• Voltage-Load 8 V ~ 16 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
