LD39130SJ41R Overview

Product belongs to the LD39130S series. This product is categorized as LDO Regulators Type: Low Quiescent Current Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style FLIPCHIP-4 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 4-FlipChip (.69x.69) Tolerance of 1 % Up to 5.5V voltage input Number-of-Outputs: 1 Output Output voltage: 4.1V Positive Fixed regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 4.1 V 55 uA is 92 nA. Maximum Input Voltage: 5.5 V Output current: 300 mA The product's 1.4 V is 5.1 V. Load regulation is 0.004 % / mA. The voltage regulation accuracy of this product is 1 %. The 300 mV. The maximum 300 mV is 360 mV. This product's 0.02 %/V is 0.01 %/V. The product's 70 dB is -20 dB. This product has an - of 2.7 V to 5.5 V.

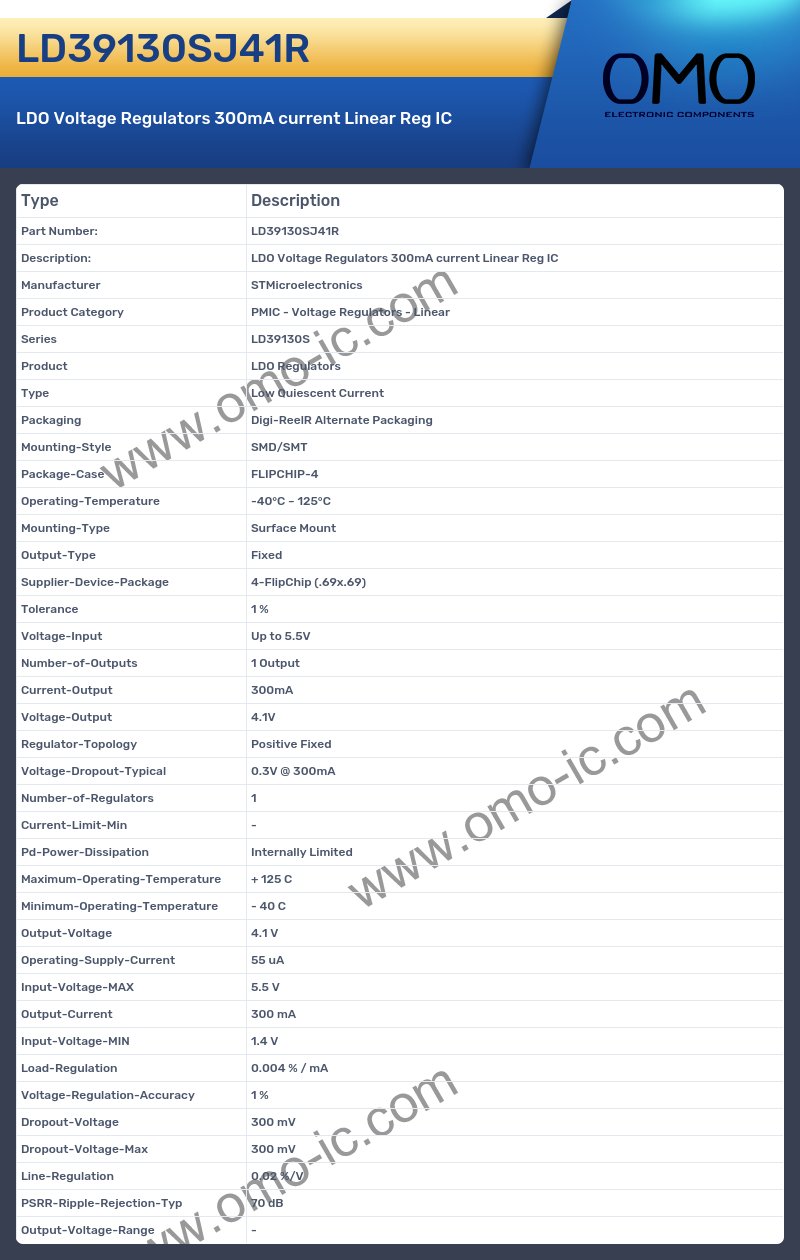

LD39130SJ41R Image

LD39130SJ41R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD39130S
• Product LDO Regulators
• Type Low Quiescent Current
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case FLIPCHIP-4
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 4-FlipChip (.69x.69)
• Tolerance 1 %
• Voltage-Input Up to 5.5V
• Number-of-Outputs 1 Output
• Current-Output 300mA
• Voltage-Output 4.1V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.3V @ 300mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 4.1 V
• Operating-Supply-Current 55 uA
• Input-Voltage-MAX 5.5 V
• Output-Current 300 mA
• Input-Voltage-MIN 1.4 V
• Load-Regulation 0.004 % / mA
• Voltage-Regulation-Accuracy 1 %
• Dropout-Voltage 300 mV
• Dropout-Voltage-Max 300 mV
• Line-Regulation 0.02 %/V
• PSRR-Ripple-Rejection-Typ 70 dB
• Output-Voltage-Range -
