LDFMPT-TR Overview

Product belongs to the LDFM series. This product is categorized as LDO Regulators Type: Low Drop Voltage Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PPAK-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: PPAK 2.5 V ~ 16 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.8 V ~ 12 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: + 40 C Output voltage: 800 mV to 12 V 200 uA is 92 nA. Maximum Input Voltage: 16 V Output current: 500 mA The product's 2.5 V is 5.1 V. Load regulation is 0.06 % / A. The voltage regulation accuracy of this product is 1 %. Reference voltage is 0.8 V . The maximum 300 mV is 360 mV. This product's 0.01 %/V is 0.01 %/V. The product's 60 dB is -20 dB.

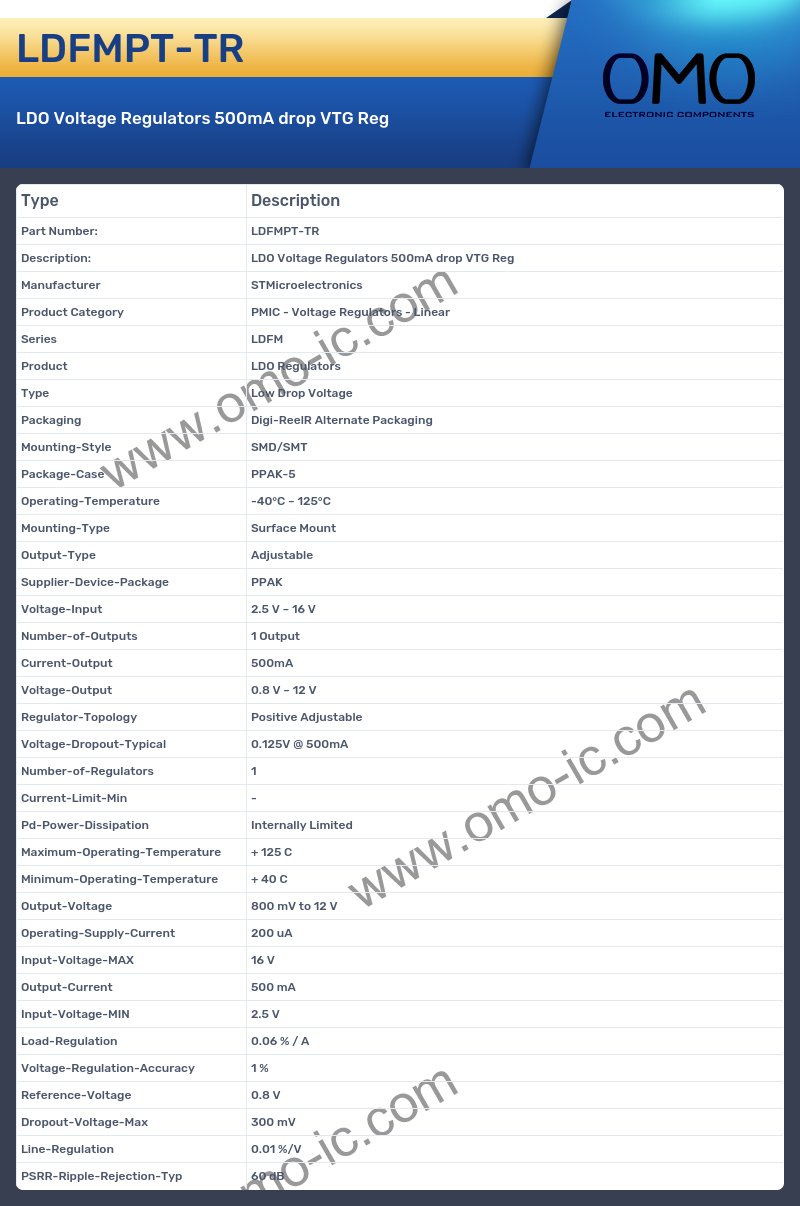

LDFMPT-TR Image

LDFMPT-TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LDFM
• Product LDO Regulators
• Type Low Drop Voltage
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PPAK-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package PPAK
• Voltage-Input 2.5 V ~ 16 V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 0.8 V ~ 12 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.125V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature + 40 C
• Output-Voltage 800 mV to 12 V
• Operating-Supply-Current 200 uA
• Input-Voltage-MAX 16 V
• Output-Current 500 mA
• Input-Voltage-MIN 2.5 V
• Load-Regulation 0.06 % / A
• Voltage-Regulation-Accuracy 1 %
• Reference-Voltage 0.8 V
• Dropout-Voltage-Max 300 mV
• Line-Regulation 0.01 %/V
• PSRR-Ripple-Rejection-Typ 60 dB
