LDK120C08R

LDK120C08R Overview

Product belongs to the LDK120C series. This product is categorized as LDO Regulators Type: Low Current Low Noise LDO Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-323-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-323-5 Tolerance of 2 % 1.9 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.8V Positive Fixed regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 800 mV Maximum Input Voltage: 5.5 V Output current: 200 mA The product's 1.9 V is 5.1 V. Load regulation is 0.006 % / mA. The voltage regulation accuracy of this product is 2 %. The 150 mV. The maximum 300 mV is 360 mV. This product's 0.05 %/V is 0.01 %/V. This product has an - of 2.7 V to 5.5 V.

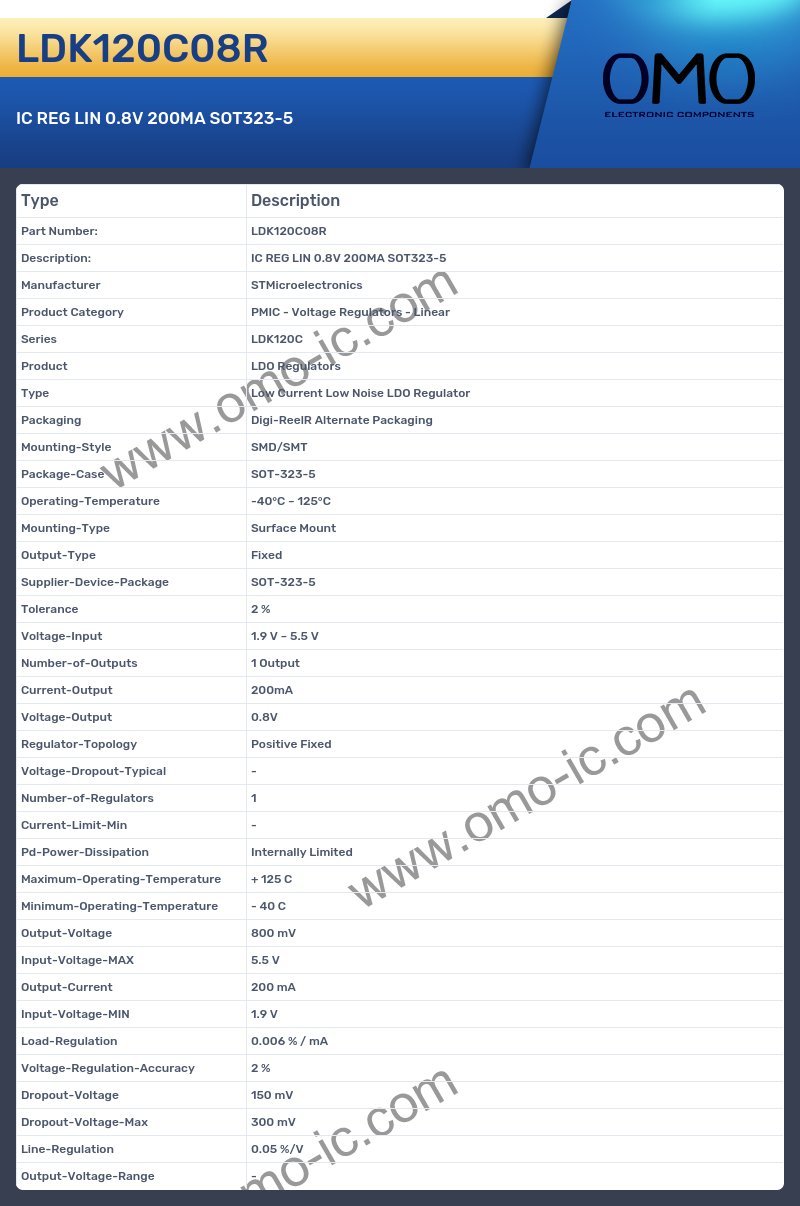

LDK120C08R Image

LDK120C08R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LDK120C
• Product LDO Regulators
• Type Low Current Low Noise LDO Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-323-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-323-5
• Tolerance 2 %
• Voltage-Input 1.9 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output 0.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 800 mV
• Input-Voltage-MAX 5.5 V
• Output-Current 200 mA
• Input-Voltage-MIN 1.9 V
• Load-Regulation 0.006 % / mA
• Voltage-Regulation-Accuracy 2 %
• Dropout-Voltage 150 mV
• Dropout-Voltage-Max 300 mV
• Line-Regulation 0.05 %/V
• Output-Voltage-Range -
