LDS3985PU33RY

LDS3985PU33RY Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as LDO Voltage Regulators Type: Very Low Drop Low Noise BiCMOS Voltage Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-EP-6 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-DFN (3x3) Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V 85 uA is 92 nA. Maximum Input Voltage: 6 V Output current: 300 mA The product's 2.5 V is 5.1 V. Load regulation is 0.0008 % / mA. The 250 mV. The maximum 250 mV is 360 mV. This product's +/- 0.1 %/V is 0.01 %/V. The product's 55 dB is -20 dB. This product has an - of 2.7 V to 5.5 V.

LDS3985PU33RY Image

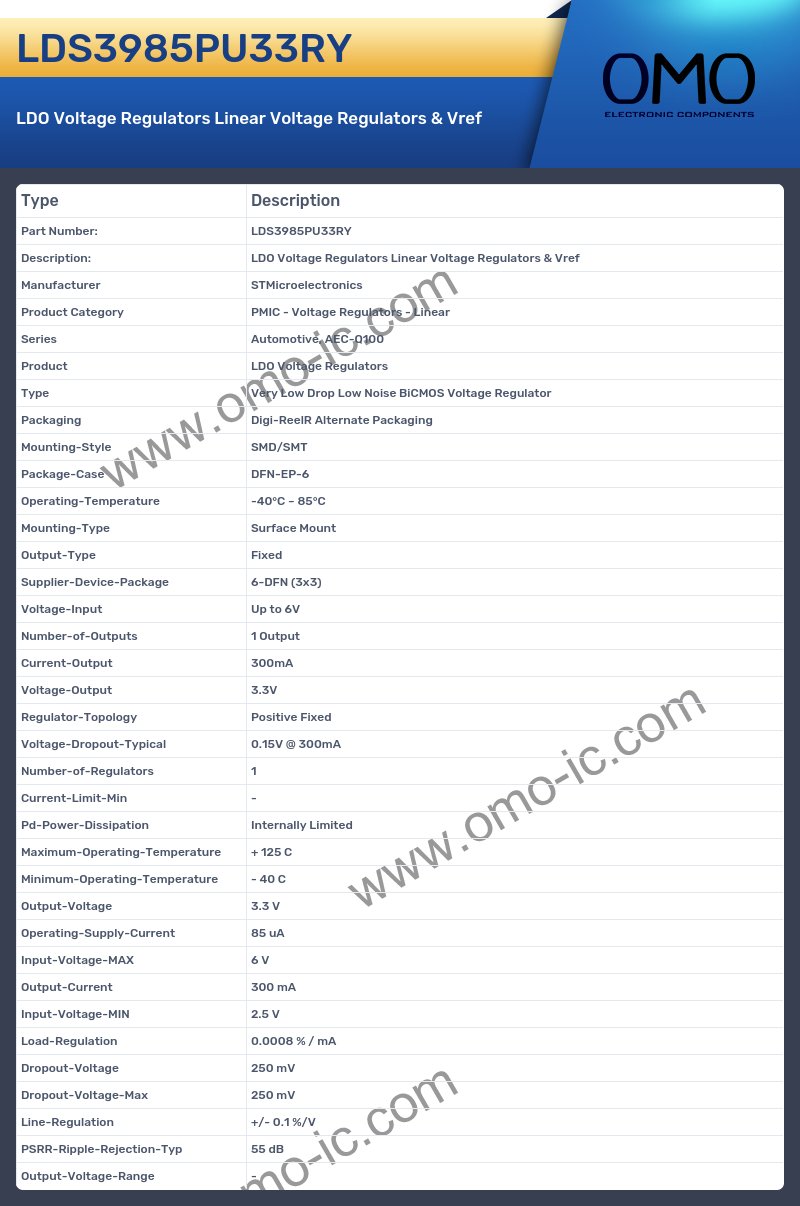

LDS3985PU33RY Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series Automotive, AEC-Q100
• Product LDO Voltage Regulators
• Type Very Low Drop Low Noise BiCMOS Voltage Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DFN-EP-6
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-DFN (3x3)
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 300mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.15V @ 300mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Operating-Supply-Current 85 uA
• Input-Voltage-MAX 6 V
• Output-Current 300 mA
• Input-Voltage-MIN 2.5 V
• Load-Regulation 0.0008 % / mA
• Dropout-Voltage 250 mV
• Dropout-Voltage-Max 250 mV
• Line-Regulation +/- 0.1 %/V
• PSRR-Ripple-Rejection-Typ 55 dB
• Output-Voltage-Range -
