LF15ABDT-TR

LF15ABDT-TR Overview

Product belongs to the LF15 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style DPAK-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: D-Pak 2.5 V ~ 16 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.5 V Maximum Input Voltage: 16 V Output current: 500 mA The product's 2.5 V is 5.1 V. Load regulation is 10 mV. The voltage regulation accuracy of this product is 1 %. Input bias current of 500 uA This product has a 1 mA of 7 mA, making it ideal for low-power applications. The 1 V at 200 mA. The maximum 1 V is 360 mV. This product's 10 mV is 0.01 %/V.

LF15ABDT-TR Image

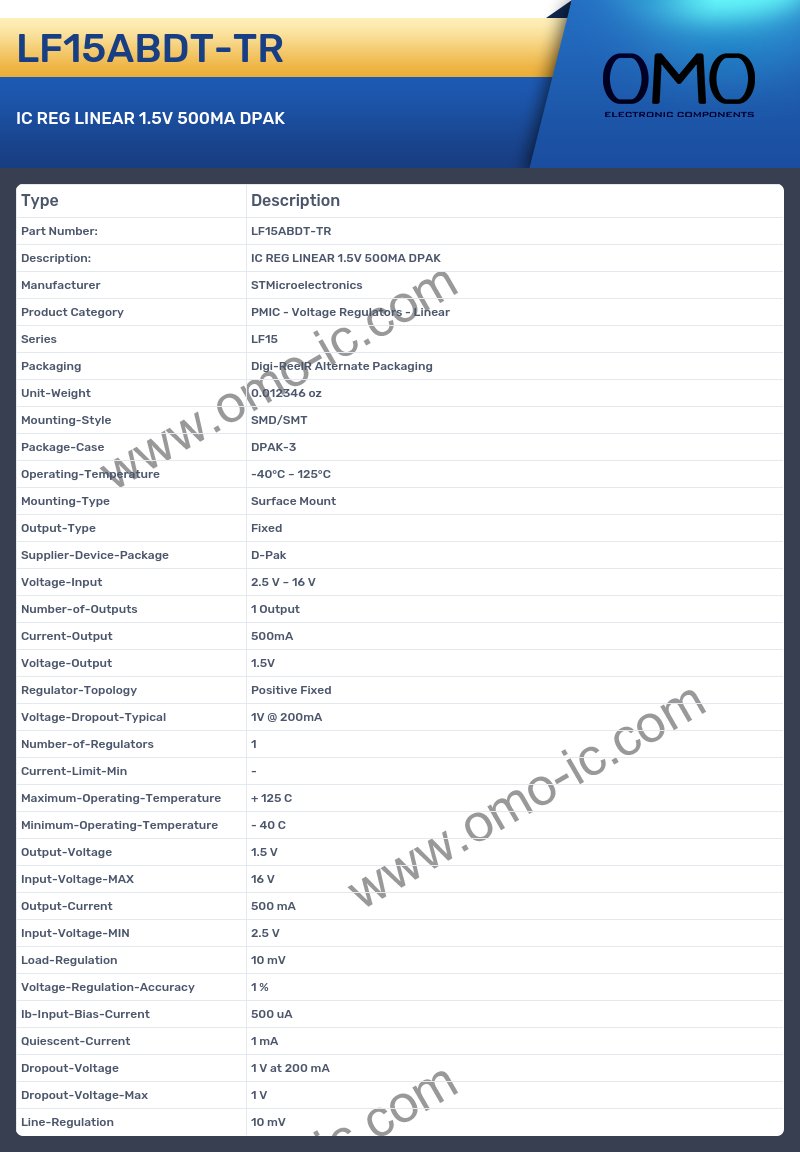

LF15ABDT-TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LF15
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012346 oz
• Mounting-Style SMD/SMT
• Package-Case DPAK-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package D-Pak
• Voltage-Input 2.5 V ~ 16 V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 1.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1V @ 200mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.5 V
• Input-Voltage-MAX 16 V
• Output-Current 500 mA
• Input-Voltage-MIN 2.5 V
• Load-Regulation 10 mV
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 500 uA
• Quiescent-Current 1 mA
• Dropout-Voltage 1 V at 200 mA
• Dropout-Voltage-Max 1 V
• Line-Regulation 10 mV
