LM293P

LM293P Overview

Product belongs to the LM293 series. This product is categorized as Analog Comparators Type: Differential Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -25°C ~ 85°C Through Hole mounting type Output-Type: CMOS, MOS, Open-Collector, TTL Number of channels: 2 Channel Supplier device package: 8-PDIP Voltage supply range: 2 V ~ 36 V, ±1 V ~ 18 V 2 element 2.5mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 300 ns response time Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C 500 uA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 2 V Differential comparator type Input bias current of 250 nA The 5 mV. The 50 nA. 6 mA

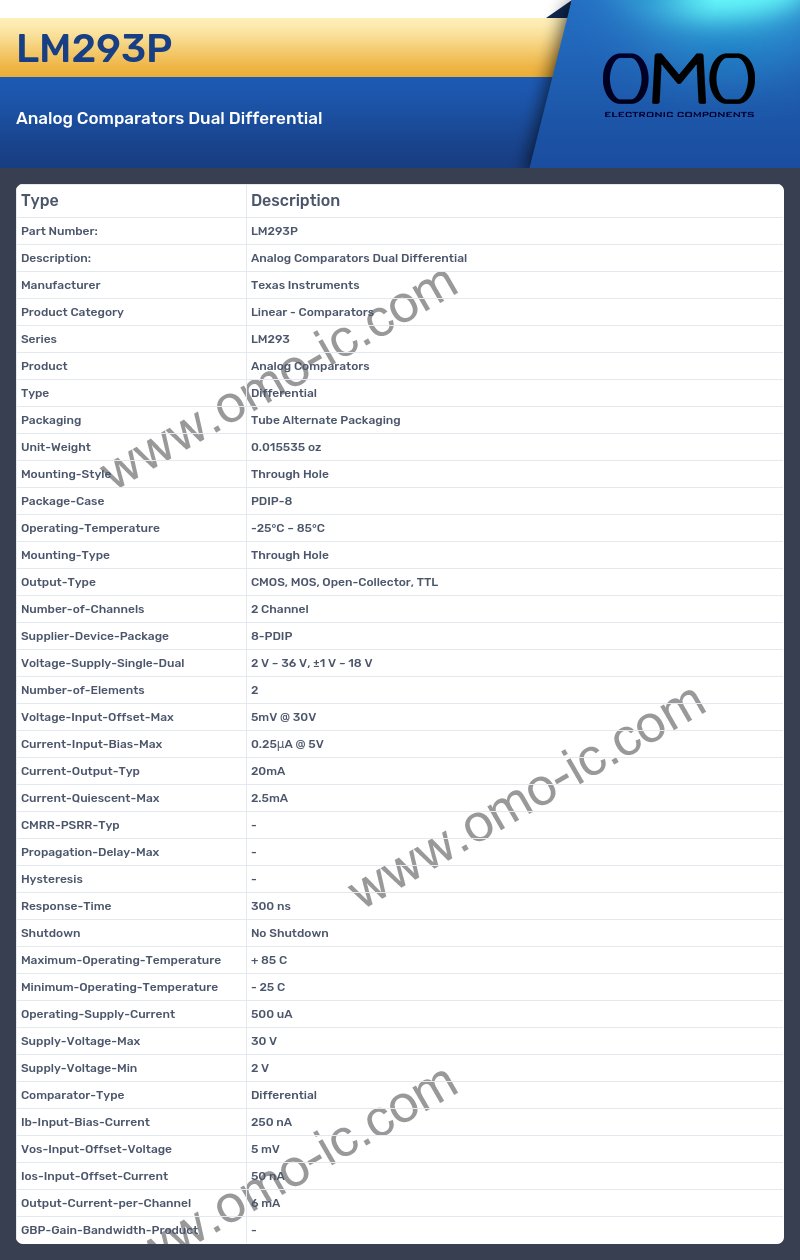

LM293P Image

LM293P Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LM293
• Product Analog Comparators
• Type Differential
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -25°C ~ 85°C
• Mounting-Type Through Hole
• Output-Type CMOS, MOS, Open-Collector, TTL
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-PDIP
• Voltage-Supply-Single-Dual 2 V ~ 36 V, ±1 V ~ 18 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 5mV @ 30V
• Current-Input-Bias-Max 0.25μA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 2.5mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 300 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Current 500 uA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 2 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 250 nA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 50 nA
• Output-Current-per-Channel 6 mA
• GBP-Gain-Bandwidth-Product -
