LMC7211AIM

LMC7211AIM Overview

Product belongs to the LMC7211-N series. This product is categorized as Analog Comparators Type: General Purpose Tube is the packaging method for this product Weight of 0.005044 oz SMD/SMT Mounting-Style SOIC-8 Narrow Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Push-Pull Number of channels: 1 Channel Supplier device package: 8-SOIC Voltage supply range: 2.7 V ~ 15 V, ±1.35 V ~ 7.5 V 1 element 14μA maximum quiescent current. Maximum propagation delay: 10μs Hysteresis value of - 4 us response time Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 14 uA is 92 nA. Maximum supply voltage of 15 V Minimum supply voltage is 2.7 V General Purpose comparator type Input bias current of 0.04 pA The 5 mV. The 80 dB. The CMRR-Common-Mode-Rejection-Ratio is 75 dB.

LMC7211AIM Image

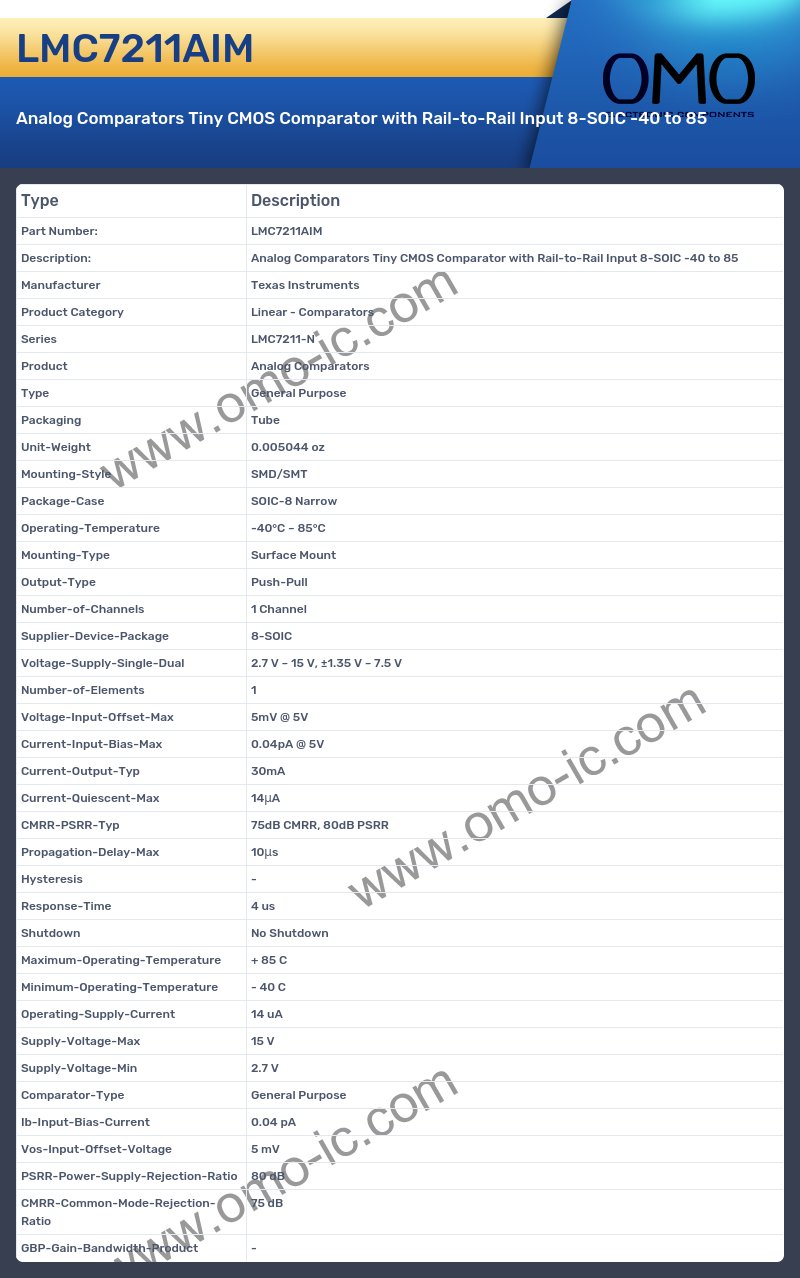

LMC7211AIM Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LMC7211-N
• Product Analog Comparators
• Type General Purpose
• Packaging Tube
• Unit-Weight 0.005044 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8 Narrow
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 2.7 V ~ 15 V, ±1.35 V ~ 7.5 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 5mV @ 5V
• Current-Input-Bias-Max 0.04pA @ 5V
• Current-Output-Typ 30mA
• Current-Quiescent-Max 14μA
• CMRR-PSRR-Typ 75dB CMRR, 80dB PSRR
• Propagation-Delay-Max 10μs
• Hysteresis -
• Response-Time 4 us
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 14 uA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 2.7 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 0.04 pA
• Vos-Input-Offset-Voltage 5 mV
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• CMRR-Common-Mode-Rejection-Ratio 75 dB
• GBP-Gain-Bandwidth-Product -
