LP211DR

LP211DR Overview

Product belongs to the LP211 series. This product is categorized as Analog Comparators Type: Differential Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -25°C ~ 85°C Surface Mount mounting type Output-Type: Open-Collector, Open-Emitter Number of channels: 1 Channel Supplier device package: 8-SOIC Voltage supply range: 3.5 V ~ 30 V, ±1.75 V ~ 15 V 1 element 300μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.2 us response time Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C 300 uA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 3.5 V Differential comparator type Input bias current of 100 nA The 7.5 mV. 25 mA

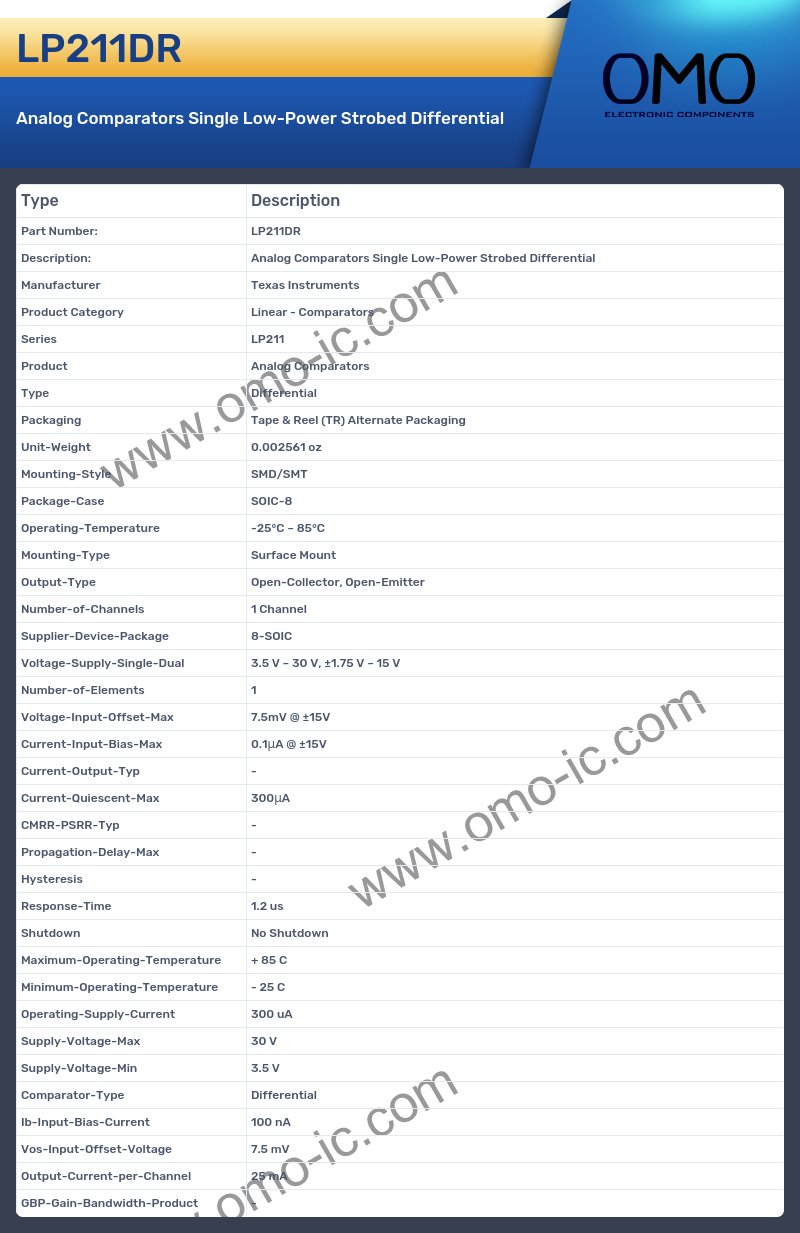

LP211DR Image

LP211DR Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LP211
• Product Analog Comparators
• Type Differential
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -25°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Open-Collector, Open-Emitter
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 3.5 V ~ 30 V, ±1.75 V ~ 15 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 7.5mV @ ±15V
• Current-Input-Bias-Max 0.1μA @ ±15V
• Current-Output-Typ -
• Current-Quiescent-Max 300μA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.2 us
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Current 300 uA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 3.5 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 100 nA
• Vos-Input-Offset-Voltage 7.5 mV
• Output-Current-per-Channel 25 mA
• GBP-Gain-Bandwidth-Product -
