LSM303DTR

LSM303DTR Overview

Product belongs to the LSM303D series. Reel is the packaging method for this product SMD/SMT Mounting-Style Operational temperature range: -40°C ~ 85°C (TA) Output-Type: I2C, SPI Sensitivity: 0.061 mg/LSB 0.122 mg/LSB 0.183 mg/LSB 0.244 mg/LSB 0.732 mg/LSB Accelerometer, Magnetometer, 3 Axis Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 300 uA is 92 nA. I2C SPI interface type X Y Z Sensing-Axis 2 g/4 g/6 g/8 g/16 g acceleration capacity Maximum supply voltage of 3.6 VDC Minimum supply voltage is 2.16 VDC LGA-16

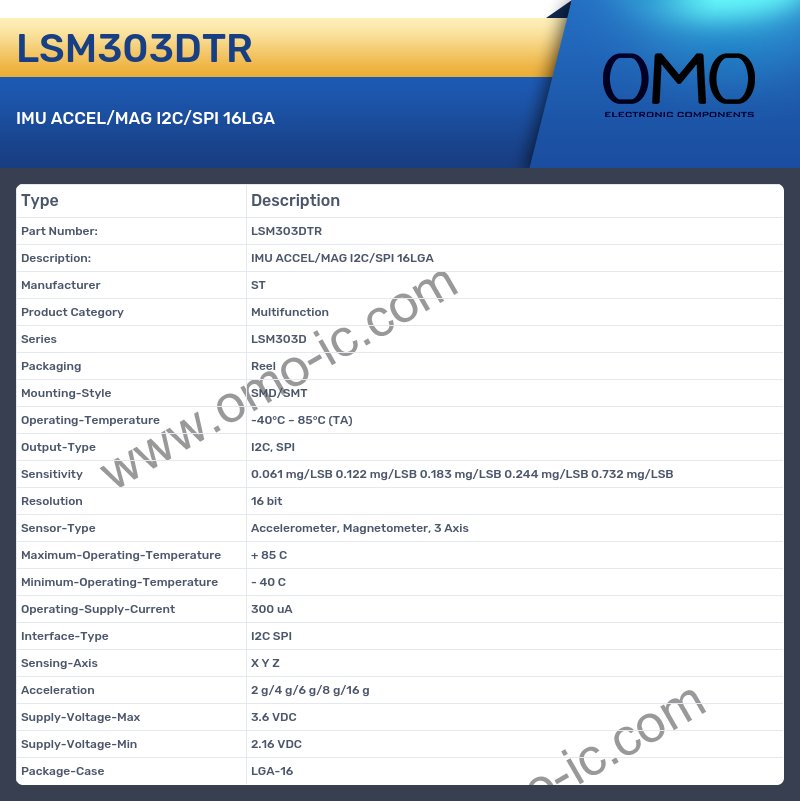

LSM303DTR Image

LSM303DTR Specifications

• Manufacturer ST
• Product Category Multifunction
• Series LSM303D
• Packaging Reel
• Mounting-Style SMD/SMT
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type I2C, SPI
• Sensitivity 0.061 mg/LSB 0.122 mg/LSB 0.183 mg/LSB 0.244 mg/LSB 0.732 mg/LSB
• Resolution 16 bit
• Sensor-Type Accelerometer, Magnetometer, 3 Axis
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 300 uA
• Interface-Type I2C SPI
• Sensing-Axis X Y Z
• Acceleration 2 g/4 g/6 g/8 g/16 g
• Supply-Voltage-Max 3.6 VDC
• Supply-Voltage-Min 2.16 VDC
• Package-Case LGA-16
