MCP14E4-E/SN

MCP14E4-E/SN Overview

This product is categorized as MOSFET Gate Drivers Type: Non-Inverting Tube is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style Configuration Non-Inverting Number-of-Outputs: 2 Power-off control: 665 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 750 uA is 92 nA. Output current: 4 A This product has a 18 ns of 16 ns. This product has a 15 ns of 16 ns. Maximum supply voltage of 18 V Minimum supply voltage is 4.5 V SOIC-8 Number-of-Drivers: 2 Driver

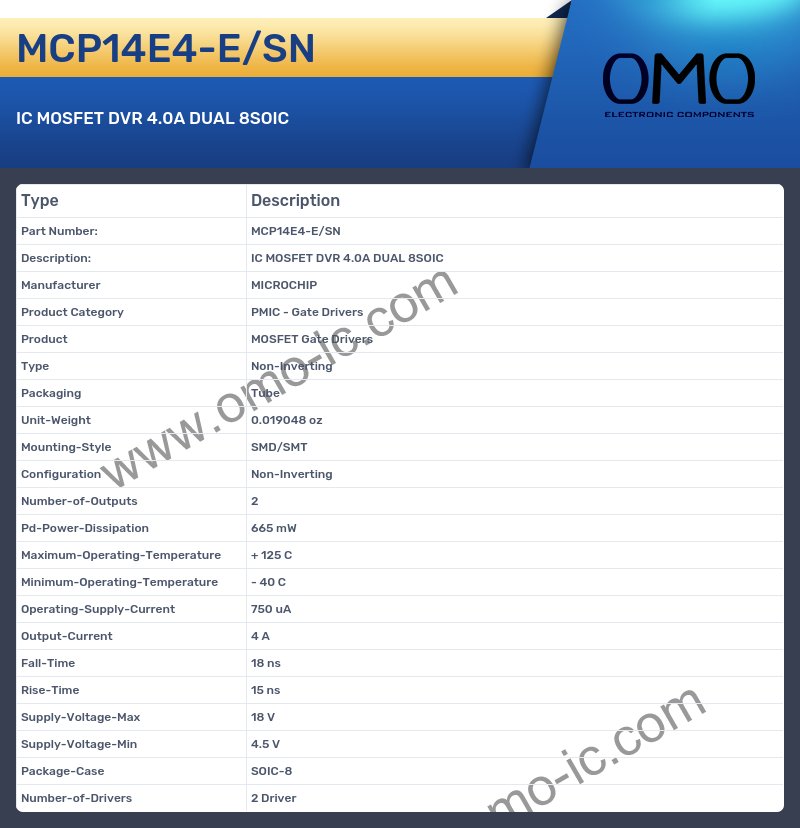

MCP14E4-E/SN Image

MCP14E4-E/SN Specifications

• Manufacturer MICROCHIP
• Product Category PMIC - Gate Drivers
• Product MOSFET Gate Drivers
• Type Non-Inverting
• Packaging Tube
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Configuration Non-Inverting
• Number-of-Outputs 2
• Pd-Power-Dissipation 665 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 750 uA
• Output-Current 4 A
• Fall-Time 18 ns
• Rise-Time 15 ns
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 4.5 V
• Package-Case SOIC-8
• Number-of-Drivers 2 Driver
