MCP1630-E/MS

MCP1630-E/MS Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style MSOP-8 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 8-MSOP Number-of-Outputs: 1 Topology: Buck, Boost, Buck-Boost, Flyback, SEPIC feedback Supply Voltage: 3 V ~ 5.5 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include - function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 3 V to 5.5 V supply voltage for reliable performance. 2.8 mA is 92 nA. Switching frequency is 1 MHz This product has a 6.2 ns of 16 ns. This product has a 5.9 ns of 16 ns.

MCP1630-E/MS Image

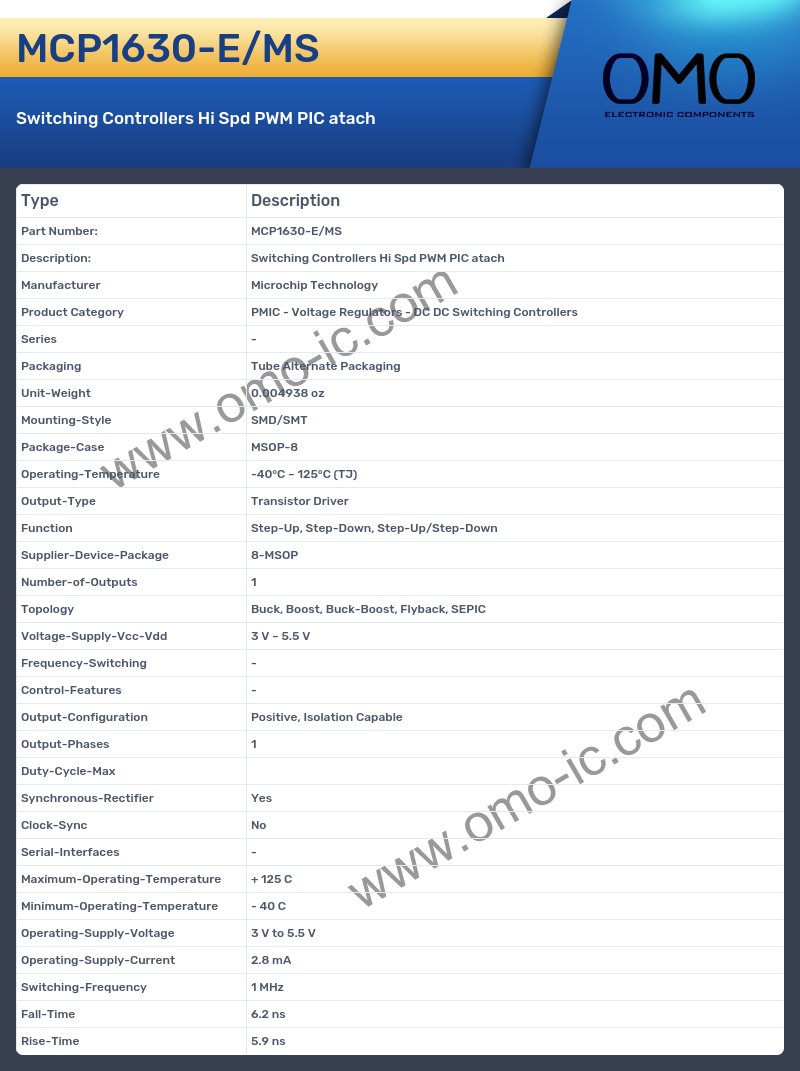

MCP1630-E/MS Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 8-MSOP
• Number-of-Outputs 1
• Topology Buck, Boost, Buck-Boost, Flyback, SEPIC
• Voltage-Supply-Vcc-Vdd 3 V ~ 5.5 V
• Frequency-Switching -
• Control-Features -
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V to 5.5 V
• Operating-Supply-Current 2.8 mA
• Switching-Frequency 1 MHz
• Fall-Time 6.2 ns
• Rise-Time 5.9 ns
