MCP19116-E/MJ Overview

Product belongs to the Automotive, AEC-Q100 series. Tube is the packaging method for this product 24-VFQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 24-QFN (4x4) Number-of-Outputs: 1 Topology: Boost, Cuk, Flyback, SEPIC feedback Supply Voltage: 4.5 V ~ 42 V This product features 'Frequency-Switching' at 31.25kHz ~ 2MHz for optimal performance. The Control-Features include EN function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of No is included as a product attribute. Yes enabled Serial Interfaces: I2C

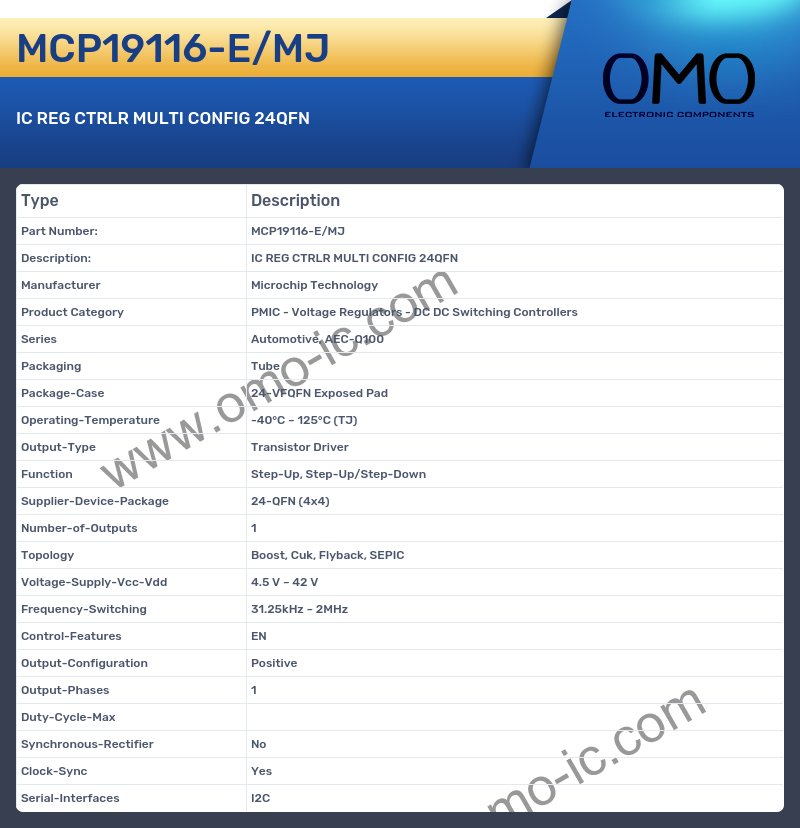

MCP19116-E/MJ Image

MCP19116-E/MJ Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series Automotive, AEC-Q100
• Packaging Tube
• Package-Case 24-VFQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 24-QFN (4x4)
• Number-of-Outputs 1
• Topology Boost, Cuk, Flyback, SEPIC
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 42 V
• Frequency-Switching 31.25kHz ~ 2MHz
• Control-Features EN
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier No
• Clock-Sync Yes
• Serial-Interfaces I2C
