MCP23S18-E/SO

MCP23S18-E/SO Overview

Product belongs to the - series. This product is categorized as I/O Expanders Type: I/O Expander Tube Alternate Packaging is the packaging method for this product Weight of 0.078125 oz SMD/SMT Mounting-Style SOIC-28 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Interface: SPI Voltage Supply Range: 1.8 V ~ 5.5 V Supplier device package: 28-SOIC This product has 16 I/O ports for versatile connectivity. The product features an Yes output. 10MHz is 26GHz. Power-off control: 700 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. Output current: 25 mA MCP23S18 logic type Maximum clock frequency of 3.4 MHz

MCP23S18-E/SO Image

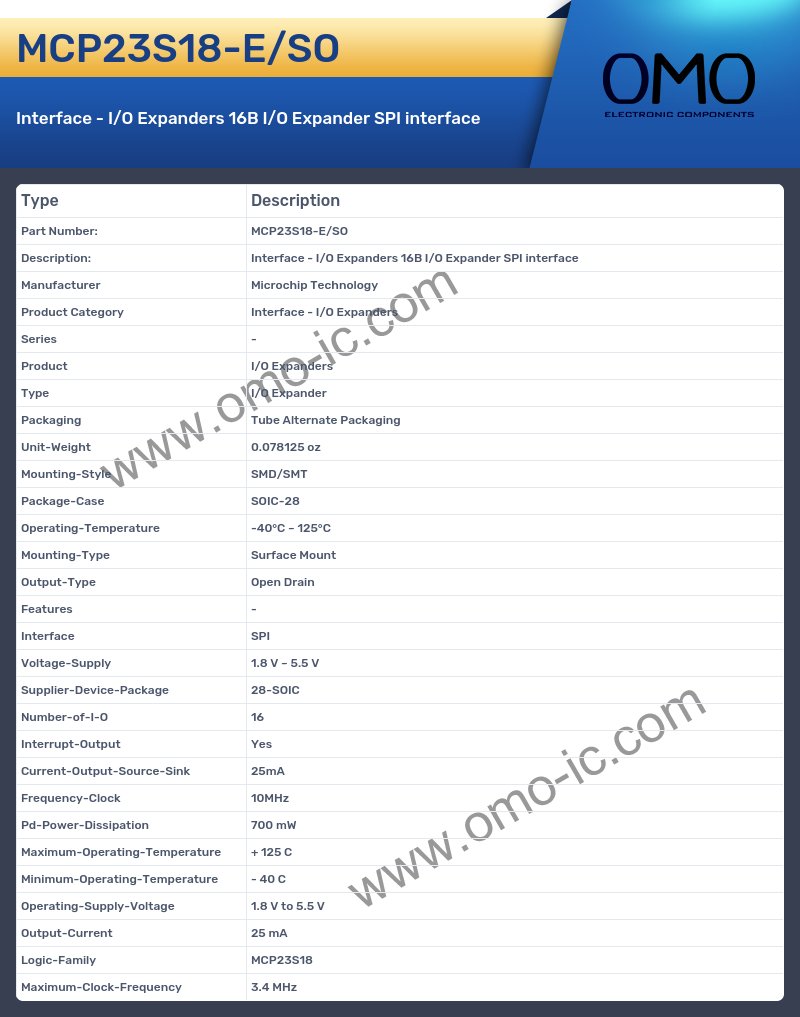

MCP23S18-E/SO Specifications

• Manufacturer Microchip Technology
• Product Category Interface - I/O Expanders
• Series -
• Product I/O Expanders
• Type I/O Expander
• Packaging Tube Alternate Packaging
• Unit-Weight 0.078125 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Features -
• Interface SPI
• Voltage-Supply 1.8 V ~ 5.5 V
• Supplier-Device-Package 28-SOIC
• Number-of-I-O 16
• Interrupt-Output Yes
• Current-Output-Source-Sink 25mA
• Frequency-Clock 10MHz
• Pd-Power-Dissipation 700 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Output-Current 25 mA
• Logic-Family MCP23S18
• Maximum-Clock-Frequency 3.4 MHz
