MJD31C

MJD31C Overview

Product belongs to the MJD31C series. Reel is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style DPAK-3 Configuration Single Power-off control: 1560 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 100 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 1.2 V The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 3 A Gain-Bandwidth-Product: 3 MHz This product is capable of handling a 3 A continuous collector current. Minimum hfe for DC collector-base gain is 25. 40 at 3 A at 4 V of 605.

MJD31C Image

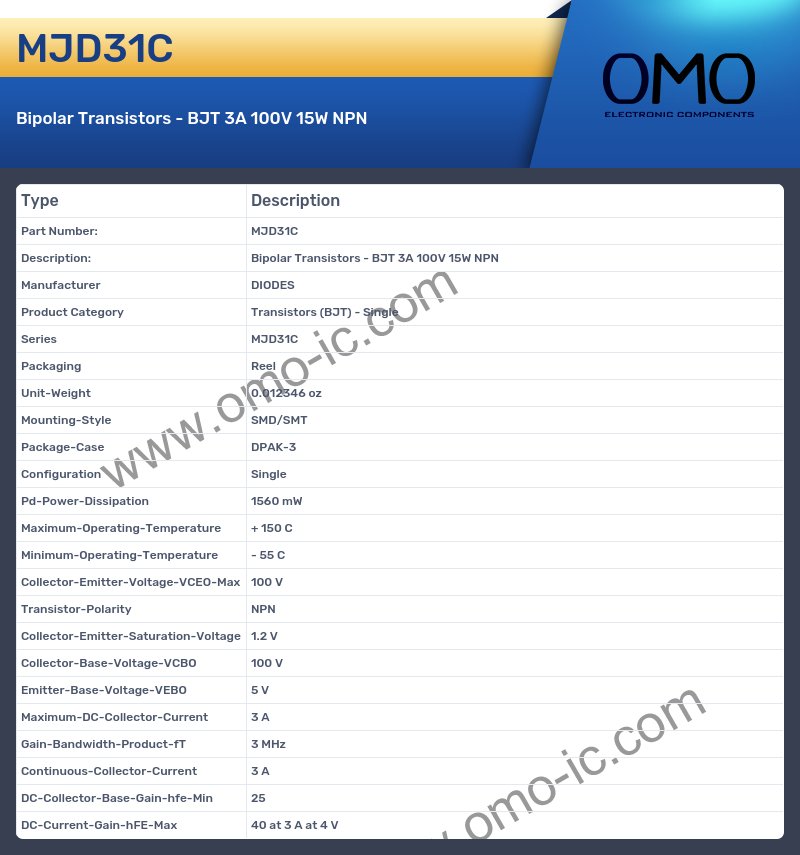

MJD31C Specifications

• Manufacturer DIODES
• Product Category Transistors (BJT) - Single
• Series MJD31C
• Packaging Reel
• Unit-Weight 0.012346 oz
• Mounting-Style SMD/SMT
• Package-Case DPAK-3
• Configuration Single
• Pd-Power-Dissipation 1560 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 100 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 1.2 V
• Collector-Base-Voltage-VCBO 100 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 3 A
• Gain-Bandwidth-Product-fT 3 MHz
• Continuous-Collector-Current 3 A
• DC-Collector-Base-Gain-hfe-Min 25
• DC-Current-Gain-hFE-Max 40 at 3 A at 4 V
