OPA615ID

OPA615ID Overview

Product belongs to the OPA615 series. This product is categorized as Transconductance Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Surface Mount mounting type Output-Type: Cascode Versatile DC Restoration applications for maximum usability Number of channels: 1 Channel Supplier device package: 14-SOIC 1 is 8. Voltage supply range: ±4 V ~ 6.2 V This product has a 13mA of 200μA. The 710MHz The 2500 V/μs. Current-Output-Channel is 20mA The amplifier is of Transconductance Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 13 mA is 92 nA. This product features a 65 mA/V of 500 S for high performance. Maximum supply voltage of 12.4 V Minimum supply voltage is 8 V Input bias current of 3 uA The 40 mV. The +/- 3.2 V. 5 mA The 4.6 nV/sqrt Hz of this product is 110 nV/sqrt Hz. 710 MHz is the 3-dB bandwidth of the product.

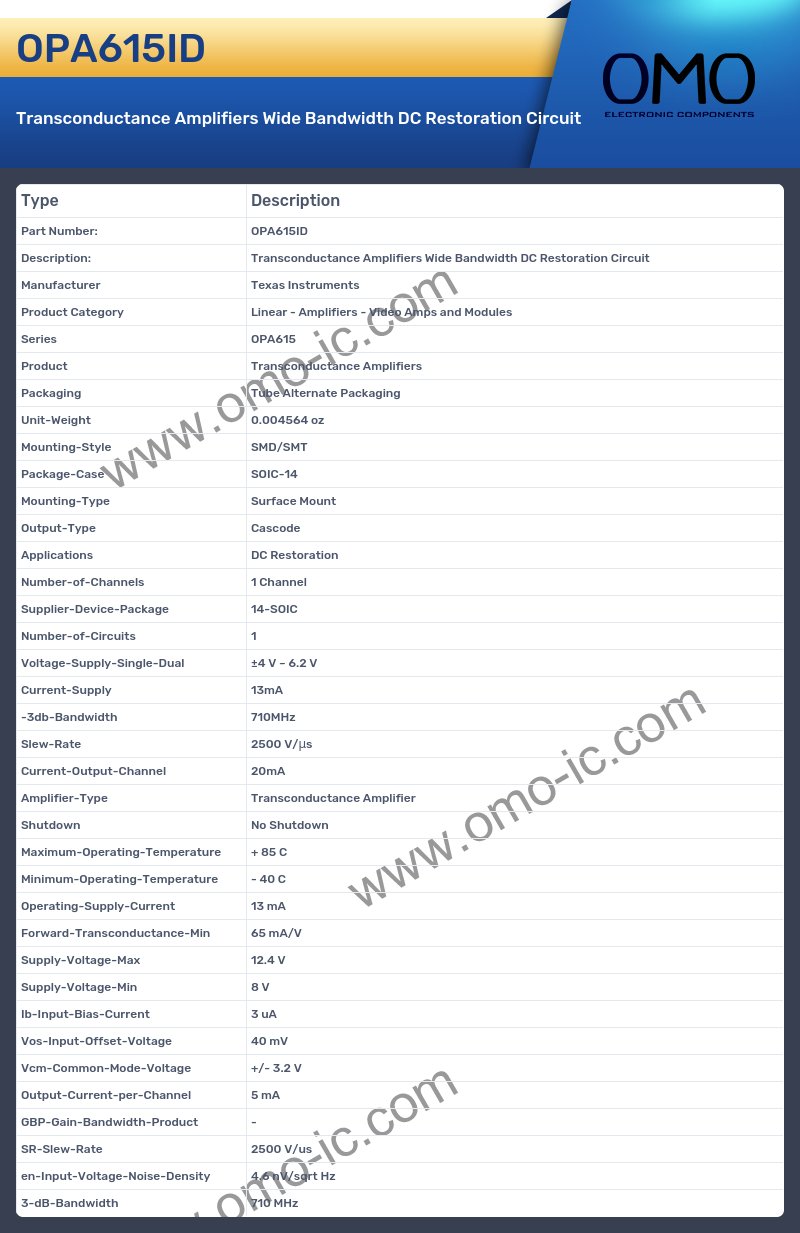

OPA615ID Image

OPA615ID Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series OPA615
• Product Transconductance Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Mounting-Type Surface Mount
• Output-Type Cascode
• Applications DC Restoration
• Number-of-Channels 1 Channel
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 1
• Voltage-Supply-Single-Dual ±4 V ~ 6.2 V
• Current-Supply 13mA
• -3db-Bandwidth 710MHz
• Slew-Rate 2500 V/μs
• Current-Output-Channel 20mA
• Amplifier-Type Transconductance Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 13 mA
• Forward-Transconductance-Min 65 mA/V
• Supply-Voltage-Max 12.4 V
• Supply-Voltage-Min 8 V
• Ib-Input-Bias-Current 3 uA
• Vos-Input-Offset-Voltage 40 mV
• Vcm-Common-Mode-Voltage +/- 3.2 V
• Output-Current-per-Channel 5 mA
• GBP-Gain-Bandwidth-Product -
• SR-Slew-Rate 2500 V/us
• en-Input-Voltage-Noise-Density 4.6 nV/sqrt Hz
• 3-dB-Bandwidth 710 MHz
