P6KE24A

P6KE24A Overview

Product belongs to the P6KE, TRANSIL series. Type: Zener Bulk is the packaging method for this product Weight of 0.010582 oz Through Hole Mounting-Style This product's Termination-Style is ' Axial ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 175 C operating temperature range for diverse applications 7.62 mm length of the product The 3.56 (Max) mm is at most 7.6 mm. T-18, Axial Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Versatile General Purpose applications for maximum usability Supplier device package: Axial The product's 3.53 mm for precision and accuracy. Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 20.5V. The Voltage-Breakdown-Min is 22.8V. No Power-Line-Protection 1250pF @ 1MHz Capacitance-Frequency Power-off control: 600 W Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Breakdown-Voltage: 22.8 V to 25.2 V Clamping-Voltage: 33.2 V 18.1 A Peak Surge Current 20.5 V working voltage Polarity: Unidirectional

P6KE24A Image

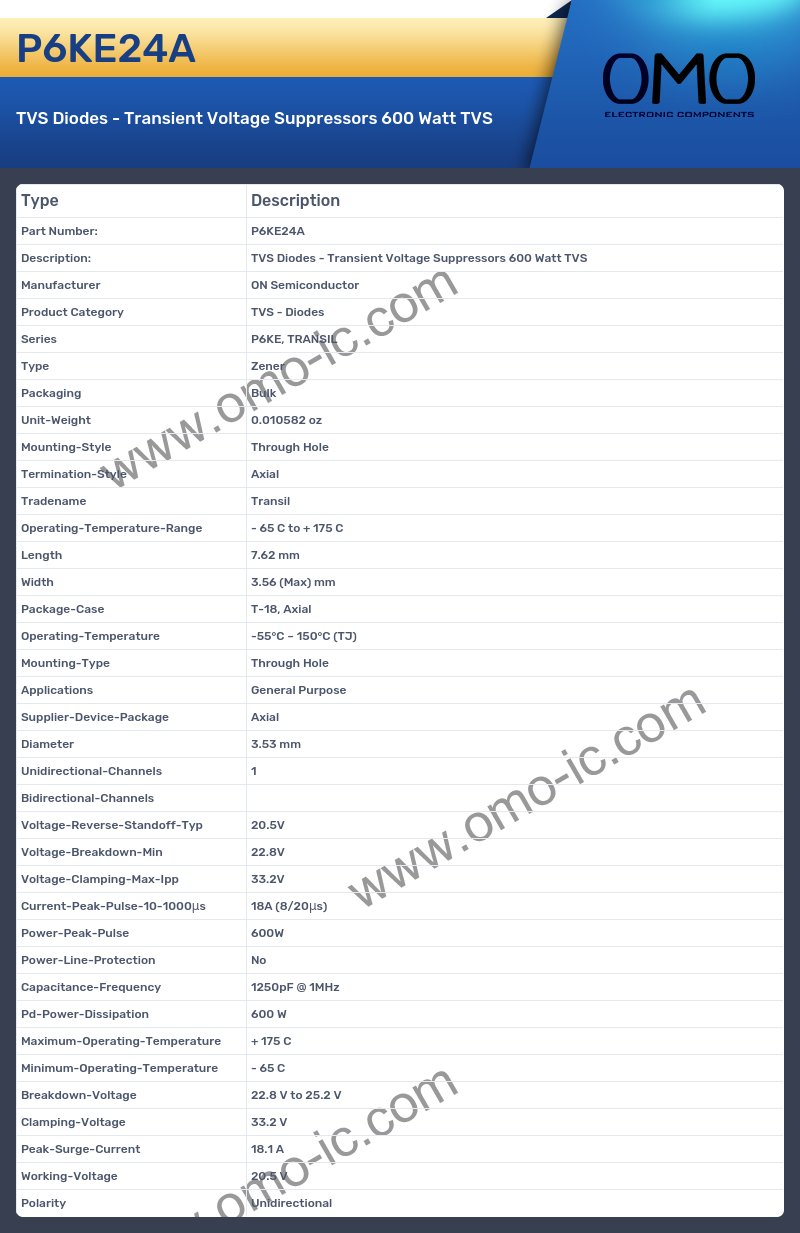

P6KE24A Specifications

• Manufacturer ON Semiconductor
• Product Category TVS - Diodes
• Series P6KE, TRANSIL
• Type Zener
• Packaging Bulk
• Unit-Weight 0.010582 oz
• Mounting-Style Through Hole
• Termination-Style Axial
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 175 C
• Length 7.62 mm
• Width 3.56 (Max) mm
• Package-Case T-18, Axial
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Applications General Purpose
• Supplier-Device-Package Axial
• Diameter 3.53 mm
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 20.5V
• Voltage-Breakdown-Min 22.8V
• Voltage-Clamping-Max-Ipp 33.2V
• Current-Peak-Pulse-10-1000μs 18A (8/20μs)
• Power-Peak-Pulse 600W
• Power-Line-Protection No
• Capacitance-Frequency 1250pF @ 1MHz
• Pd-Power-Dissipation 600 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 22.8 V to 25.2 V
• Clamping-Voltage 33.2 V
• Peak-Surge-Current 18.1 A
• Working-Voltage 20.5 V
• Polarity Unidirectional
