PIC16C55-HS/P

PIC16C55-HS/P Overview

Product belongs to the PICR 16C series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.147798 oz Through Hole Mounting-Style PDIP-28 Operational temperature range: 0°C ~ 70°C (TA) Supplier device package: 28-PDIP This product has 20 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: OTP - interface Supply Voltage: 4.5 V ~ 5.5 V 8-Bit architecture External oscillator type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 2 V to 6.25 V supply voltage for reliable performance. RS-232 interface type Processor Core: PIC This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 6.25 V Minimum supply voltage is 2.5 V Maximum clock frequency of 40 MHz This product has 20 I/O connections. This product has a 24 B data RAM size, providing ample storage for complex applications. The product has a 512 B data-ROM size. This product features 1 Timer number of timers and counters. This product features a high-precision No ADC, ensuring accurate data conversion. This product utilizes RAM, providing fast and efficient data storage. The EPROM Data-ROM-Type ensures non-volatile memory storage.

PIC16C55-HS/P Image

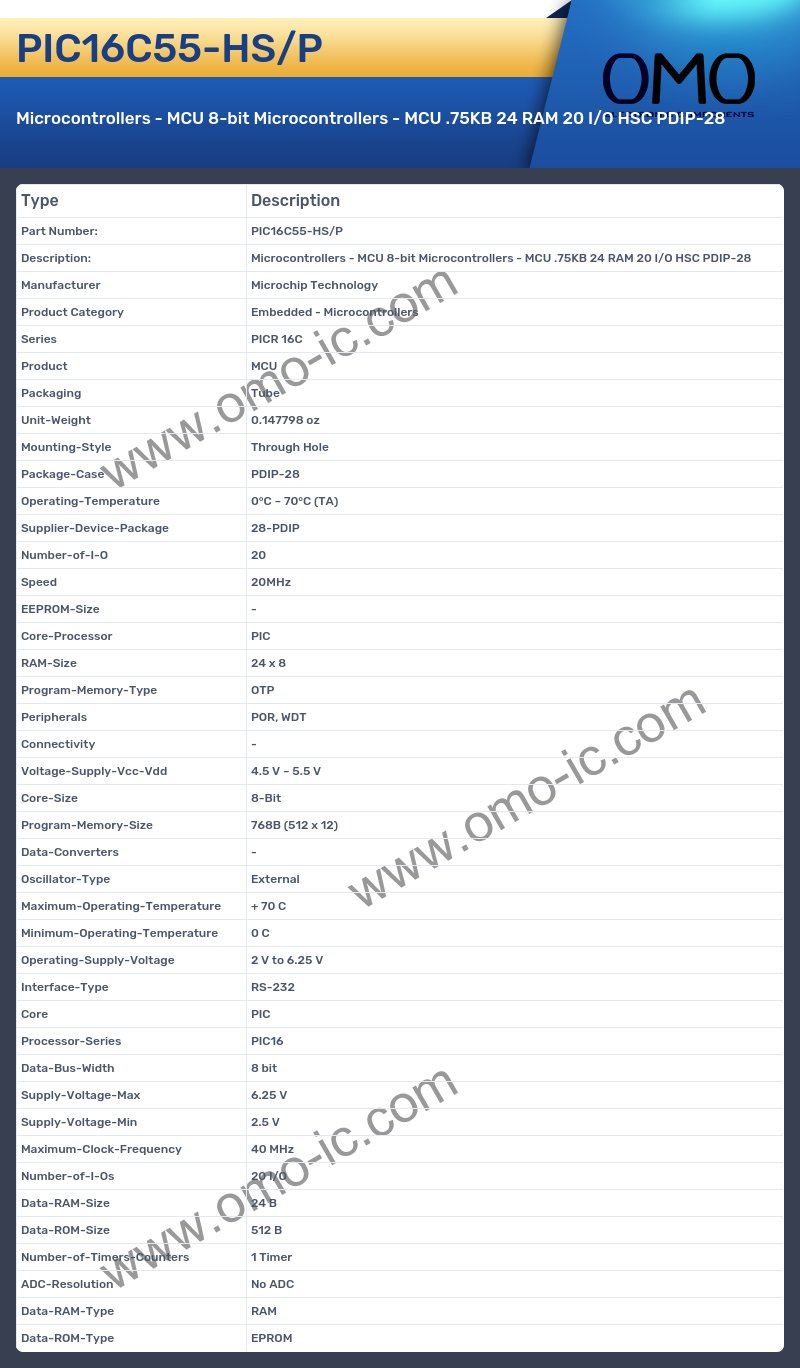

PIC16C55-HS/P Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16C
• Product MCU
• Packaging Tube
• Unit-Weight 0.147798 oz
• Mounting-Style Through Hole
• Package-Case PDIP-28
• Operating-Temperature 0°C ~ 70°C (TA)
• Supplier-Device-Package 28-PDIP
• Number-of-I-O 20
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 24 x 8
• Program-Memory-Type OTP
• Peripherals POR, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 768B (512 x 12)
• Data-Converters -
• Oscillator-Type External
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 2 V to 6.25 V
• Interface-Type RS-232
• Core PIC
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 6.25 V
• Supply-Voltage-Min 2.5 V
• Maximum-Clock-Frequency 40 MHz
• Number-of-I-Os 20 I/O
• Data-RAM-Size 24 B
• Data-ROM-Size 512 B
• Number-of-Timers-Counters 1 Timer
• ADC-Resolution No ADC
• Data-RAM-Type RAM
• Data-ROM-Type EPROM
