PIC16C55-HS/SO

PIC16C55-HS/SO Overview

Product belongs to the PICR 16C series. This product is categorized as MCU Tube Alternate Packaging is the packaging method for this product Weight of 0.078125 oz SMD/SMT Mounting-Style SOIC-28 Operational temperature range: 0°C ~ 70°C (TA) Supplier device package: 28-SOIC This product has 20 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: OTP - interface Supply Voltage: 4.5 V ~ 5.5 V 8-Bit architecture External oscillator type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 2 V to 6.25 V supply voltage for reliable performance. Processor Core: PIC This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Maximum clock frequency of 40 MHz This product has 20 I/O connections. This product has a 24 B data RAM size, providing ample storage for complex applications. The product has a 512 B data-ROM size. This product features 8 Timer number of timers and counters. This product features a high-precision No ADC, ensuring accurate data conversion. The EPROM Data-ROM-Type ensures non-volatile memory storage.

PIC16C55-HS/SO Image

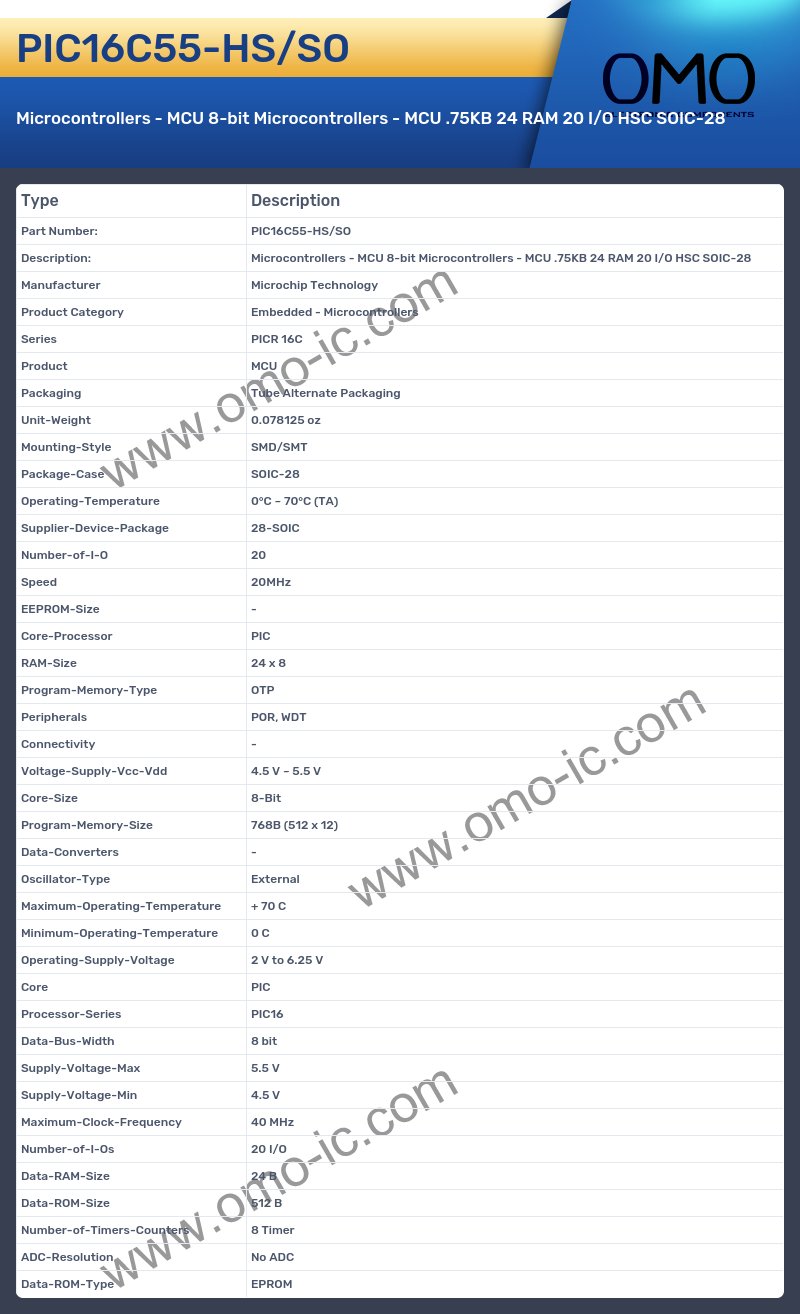

PIC16C55-HS/SO Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16C
• Product MCU
• Packaging Tube Alternate Packaging
• Unit-Weight 0.078125 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Operating-Temperature 0°C ~ 70°C (TA)
• Supplier-Device-Package 28-SOIC
• Number-of-I-O 20
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 24 x 8
• Program-Memory-Type OTP
• Peripherals POR, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 768B (512 x 12)
• Data-Converters -
• Oscillator-Type External
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 2 V to 6.25 V
• Core PIC
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Maximum-Clock-Frequency 40 MHz
• Number-of-I-Os 20 I/O
• Data-RAM-Size 24 B
• Data-ROM-Size 512 B
• Number-of-Timers-Counters 8 Timer
• ADC-Resolution No ADC
• Data-ROM-Type EPROM
