PIC16F616-E/P

PIC16F616-E/P Overview

Product belongs to the PICR 16F series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.057144 oz Through Hole Mounting-Style PDIP-14 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 14-PDIP This product has 11 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH - interface Supply Voltage: 2 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2 V to 5.5 V supply voltage for reliable performance. Processor Core: PIC16 This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V Maximum clock frequency of 20 MHz Number of ADC Channels: 8 This product has 11 I/O connections. This product has a 128 B data RAM size, providing ample storage for complex applications. This product features 3 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion.

PIC16F616-E/P Image

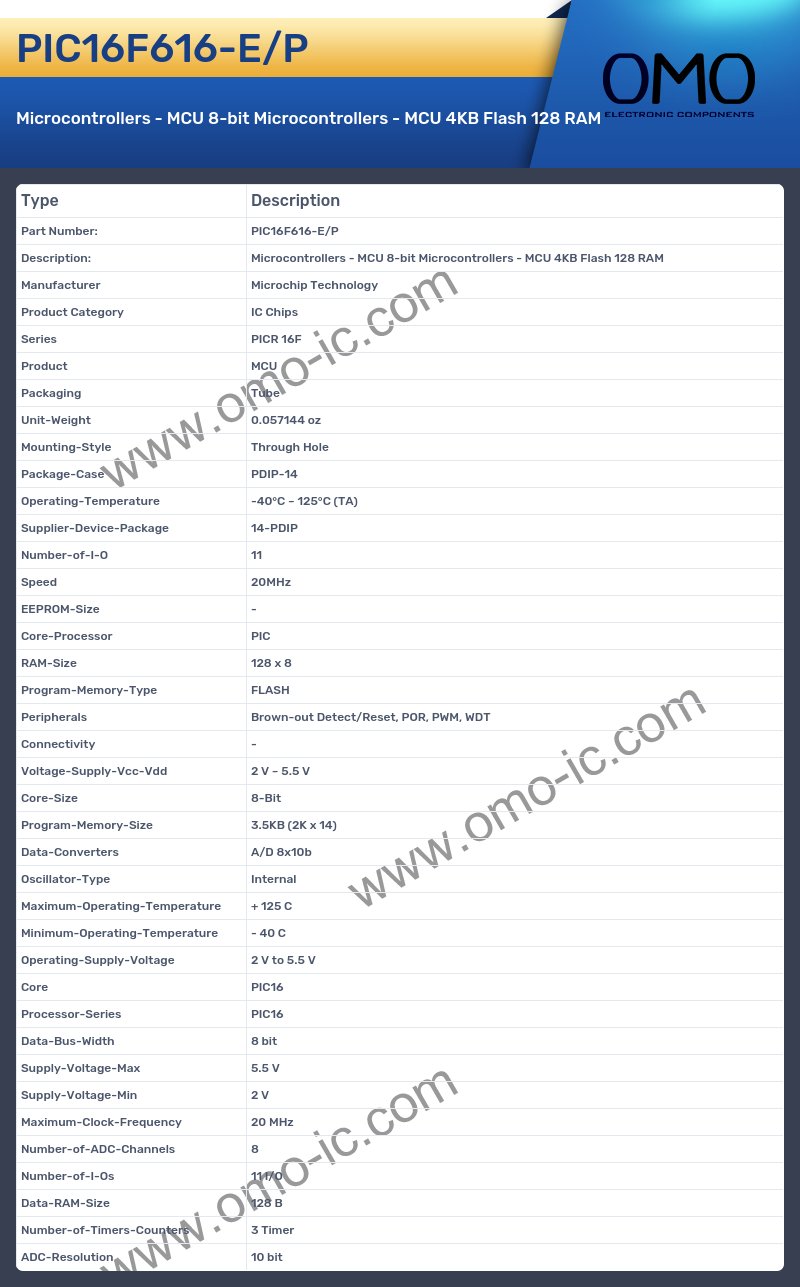

PIC16F616-E/P Specifications

• Manufacturer Microchip Technology
• Product Category IC Chips
• Series PICR 16F
• Product MCU
• Packaging Tube
• Unit-Weight 0.057144 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 14-PDIP
• Number-of-I-O 11
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 128 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 2 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 3.5KB (2K x 14)
• Data-Converters A/D 8x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 5.5 V
• Core PIC16
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Maximum-Clock-Frequency 20 MHz
• Number-of-ADC-Channels 8
• Number-of-I-Os 11 I/O
• Data-RAM-Size 128 B
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 10 bit

PIC16F616-E/P FAQ

• A: At what frequency does the Series?

  Q: The product Series is PICR 16F.

• A: What is the Product of the product?

  Q: The Product of the product is MCU.

• A: At what frequency does the Packaging?

  Q: The product Packaging is Tube.

• A: At what frequency does the Unit-Weight?

  Q: The product Unit-Weight is 0.057144 oz.

• A: At what frequency does the Mounting-Style?

  Q: The product Mounting-Style is Through Hole.

• A: Is the cutoff frequency of the product Package-Case?

  Q: Yes, the product's Package-Case is indeed PDIP-14

• A: Is the cutoff frequency of the product Operating-Temperature?

  Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 125°C (TA)

• A: Is the cutoff frequency of the product Supplier-Device-Package?

  Q: Yes, the product's Supplier-Device-Package is indeed 14-PDIP

• A: Is the cutoff frequency of the product Number-of-I-O?

  Q: Yes, the product's Number-of-I-O is indeed 11

• A: At what frequency does the Speed?

  Q: The product Speed is 20MHz.

• A: What is the Program-Memory-Type of the product?

  Q: The Program-Memory-Type of the product is FLASH.

• A: What is the Connectivity of the product?

  Q: The Connectivity of the product is -.

• A: What is the Voltage-Supply-Vcc-Vdd of the product?

  Q: The Voltage-Supply-Vcc-Vdd of the product is 2 V ~ 5.5 V.

• A: Is the cutoff frequency of the product Core-Size?

  Q: Yes, the product's Core-Size is indeed 8-Bit

• A: What is the Oscillator-Type of the product?

  Q: The Oscillator-Type of the product is Internal.

• A: What is the Maximum-Operating-Temperature of the product?

  Q: The Maximum-Operating-Temperature of the product is + 125 C.

• A: What is the Minimum-Operating-Temperature of the product?

  Q: The Minimum-Operating-Temperature of the product is - 40 C.

• A: Is the cutoff frequency of the product Operating-Supply-Voltage?

  Q: Yes, the product's Operating-Supply-Voltage is indeed 2 V to 5.5 V

• A: At what frequency does the Core?

  Q: The product Core is PIC16.

• A: What is the Processor-Series of the product?

  Q: The Processor-Series of the product is PIC16.

• A: Is the cutoff frequency of the product Data-Bus-Width?

  Q: Yes, the product's Data-Bus-Width is indeed 8 bit

• A: What is the Supply-Voltage-Max of the product?

  Q: The Supply-Voltage-Max of the product is 5.5 V.

• A: What is the Supply-Voltage-Min of the product?

  Q: The Supply-Voltage-Min of the product is 2 V.

• A: At what frequency does the Maximum-Clock-Frequency?

  Q: The product Maximum-Clock-Frequency is 20 MHz.

• A: At what frequency does the Number-of-ADC-Channels?

  Q: The product Number-of-ADC-Channels is 8.

• A: What is the Number-of-I-Os of the product?

  Q: The Number-of-I-Os of the product is 11 I/O.

• A: Is the cutoff frequency of the product Data-RAM-Size?

  Q: Yes, the product's Data-RAM-Size is indeed 128 B

• A: Is the cutoff frequency of the product Number-of-Timers-Counters?

  Q: Yes, the product's Number-of-Timers-Counters is indeed 3 Timer

• A: At what frequency does the ADC-Resolution?

  Q: The product ADC-Resolution is 10 bit.
