PIC16LF1503-E/P Overview

Product belongs to the PICR 16F series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.057144 oz Through Hole Mounting-Style PDIP-14 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 14-PDIP This product has 11 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH I2C, SPI interface Supply Voltage: 1.8 V ~ 3.6 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. Processor Core: PIC This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum clock frequency of 20 MHz This product has 12 I/O connections. This product has a 128 B data RAM size, providing ample storage for complex applications. This product features 3 Timer number of timers and counters.

PIC16LF1503-E/P Image

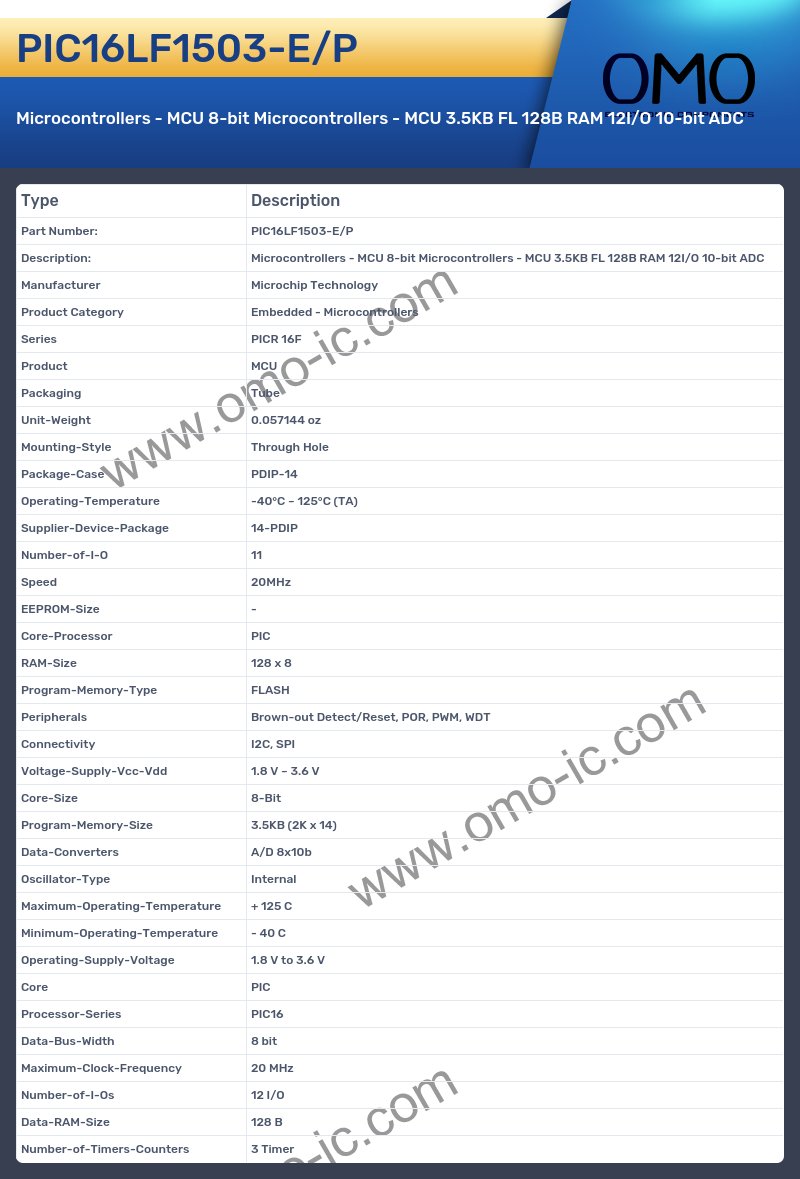

PIC16LF1503-E/P Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16F
• Product MCU
• Packaging Tube
• Unit-Weight 0.057144 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 14-PDIP
• Number-of-I-O 11
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 128 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 8-Bit
• Program-Memory-Size 3.5KB (2K x 14)
• Data-Converters A/D 8x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Core PIC
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Maximum-Clock-Frequency 20 MHz
• Number-of-I-Os 12 I/O
• Data-RAM-Size 128 B
• Number-of-Timers-Counters 3 Timer
