PIC16LF1559-E/GZ

PIC16LF1559-E/GZ Overview

Product belongs to the PICR XLP 16F series. This product is categorized as MCU Tray is the packaging method for this product SMD/SMT Mounting-Style UQFN-20 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 20-UQFN (4x4) This product has 17 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. UART I2C SPI interface type Processor Core: PIC16 The 8 bit. Maximum supply voltage of 3.6 V Minimum supply voltage is 1.8 V Maximum clock frequency of 32 MHz Number of ADC Channels: 17 Channel This product has 18 I/O connections. This product has a 512 B data RAM size, providing ample storage for complex applications. This product features 2 x 8 bit 1 x 16 bit number of timers and counters. This product includes Watchdog Timer This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

PIC16LF1559-E/GZ Image

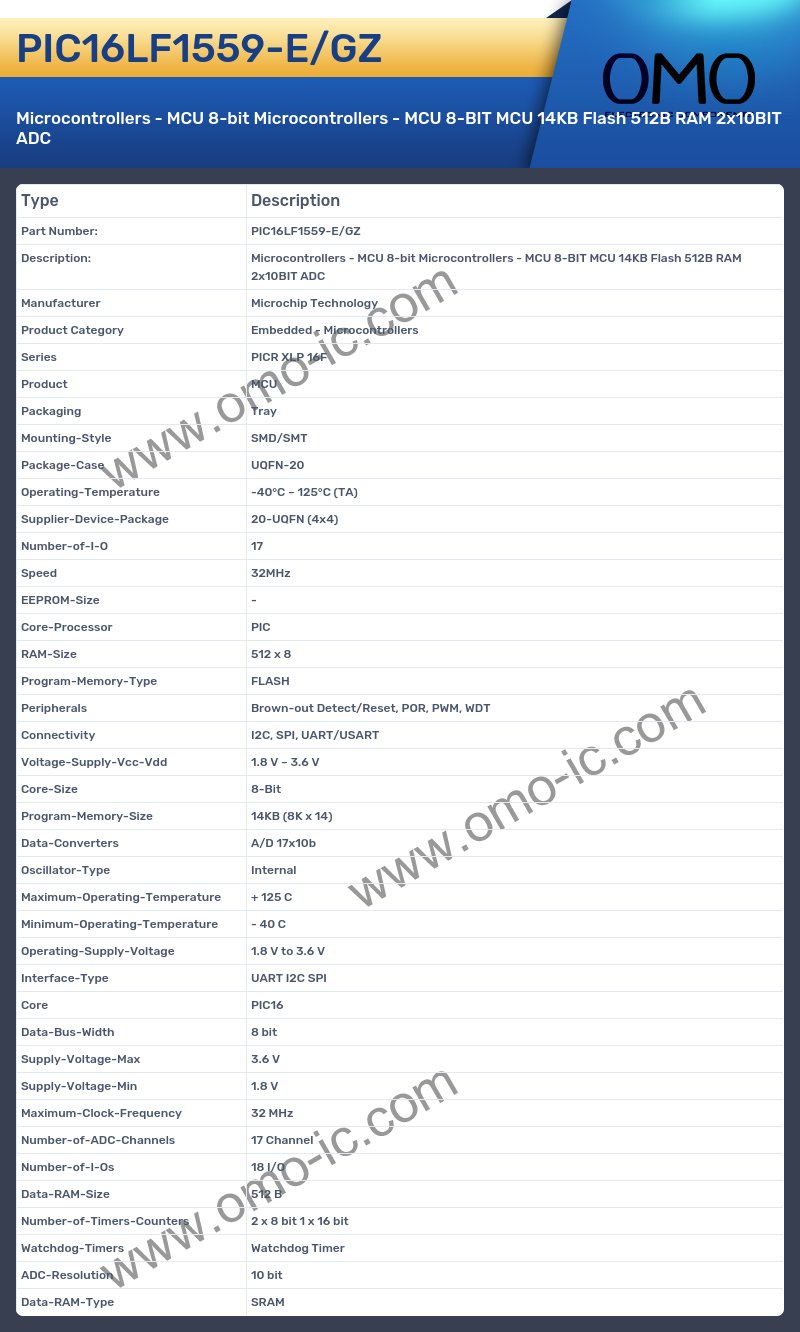

PIC16LF1559-E/GZ Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 16F
• Product MCU
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case UQFN-20
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 20-UQFN (4x4)
• Number-of-I-O 17
• Speed 32MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 512 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 8-Bit
• Program-Memory-Size 14KB (8K x 14)
• Data-Converters A/D 17x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type UART I2C SPI
• Core PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.8 V
• Maximum-Clock-Frequency 32 MHz
• Number-of-ADC-Channels 17 Channel
• Number-of-I-Os 18 I/O
• Data-RAM-Size 512 B
• Number-of-Timers-Counters 2 x 8 bit 1 x 16 bit
• Watchdog-Timers Watchdog Timer
• ADC-Resolution 10 bit
• Data-RAM-Type SRAM
