PIC16LF707-E/P

PIC16LF707-E/P Overview

Product belongs to the PICR XLP mTouch 16F series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.210004 oz Through Hole Mounting-Style PDIP-40 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 40-PDIP This product has 36 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.3 V to 3.6 V supply voltage for reliable performance. I2C SPI USART interface type Processor Core: PIC This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.3 V Maximum clock frequency of 20 MHz Number of ADC Channels: 14 This product has 36 I/O connections. This product has a 363 B data RAM size, providing ample storage for complex applications. This product features 6 Timer number of timers and counters. This product features a high-precision 8 bit, ensuring accurate data conversion.

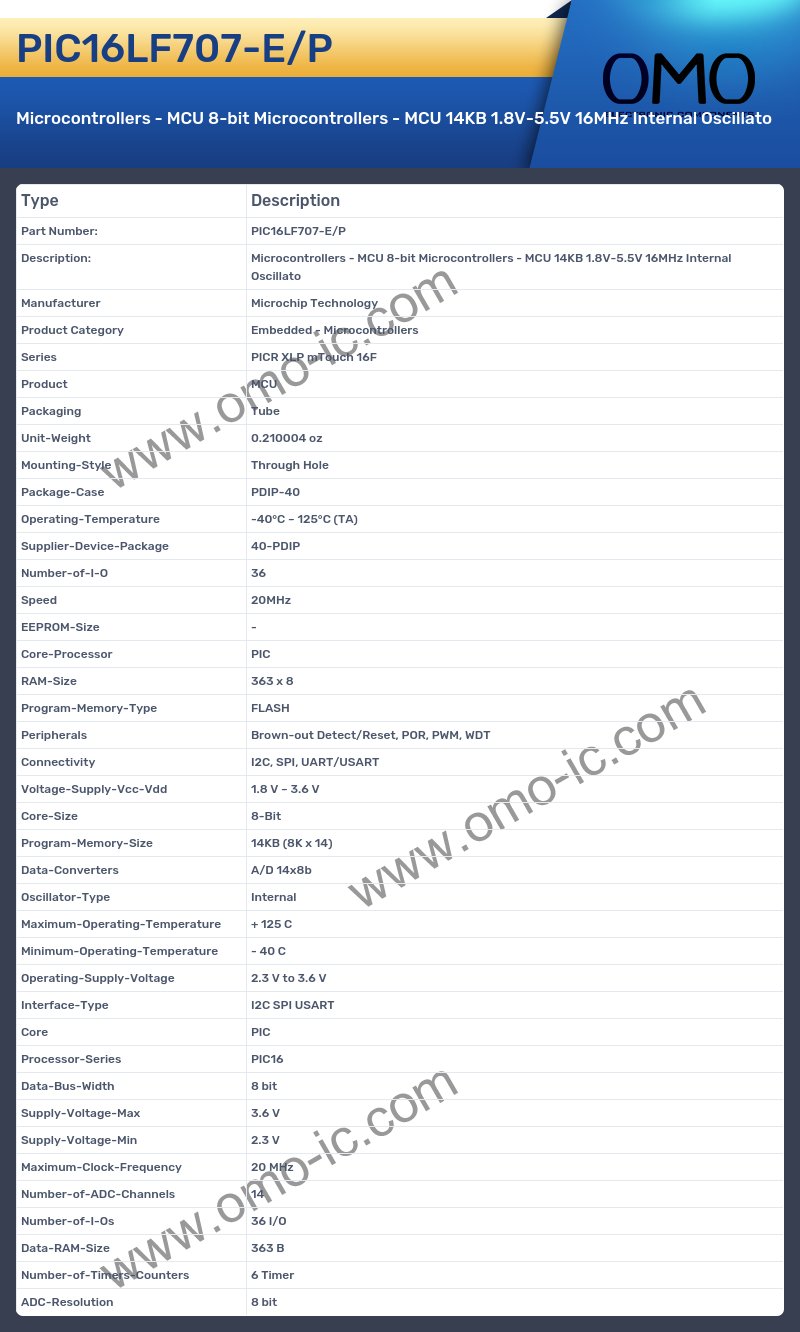

PIC16LF707-E/P Image

PIC16LF707-E/P Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP mTouch 16F
• Product MCU
• Packaging Tube
• Unit-Weight 0.210004 oz
• Mounting-Style Through Hole
• Package-Case PDIP-40
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 40-PDIP
• Number-of-I-O 36
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 363 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 8-Bit
• Program-Memory-Size 14KB (8K x 14)
• Data-Converters A/D 14x8b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.3 V to 3.6 V
• Interface-Type I2C SPI USART
• Core PIC
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.3 V
• Maximum-Clock-Frequency 20 MHz
• Number-of-ADC-Channels 14
• Number-of-I-Os 36 I/O
• Data-RAM-Size 363 B
• Number-of-Timers-Counters 6 Timer
• ADC-Resolution 8 bit
