PIC18F96J60-I/PF

PIC18F96J60-I/PF Overview

Product belongs to the PICR 18J series. This product is categorized as MCU Tray is the packaging method for this product Weight of 0.023175 oz SMD/SMT Mounting-Style TQFP-100 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 100-TQFP (14x14) This product has 70 I/O ports for versatile connectivity. Operating frequency: 41.667MHz Program memory type: FLASH EBI/EMI, Ethernet, I2C, SPI, UART/USART interface Supply Voltage: 2 V ~ 3.6 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2 V to 2.7 V 2 V to 3.6 V supply voltage for reliable performance. Display Driver EUSART Ethernet I2C MSSP SPI interface type Processor Core: PIC18 This product is powered by the PIC18 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 2.7 V 3.6 V 3.9 V Minimum supply voltage is 1.7 V 2 V Maximum clock frequency of 41.667 MHz Number of ADC Channels: 16 This product has 70 I/O connections. This product has a 3808 B data RAM size, providing ample storage for complex applications. This product features 5 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion.

PIC18F96J60-I/PF Image

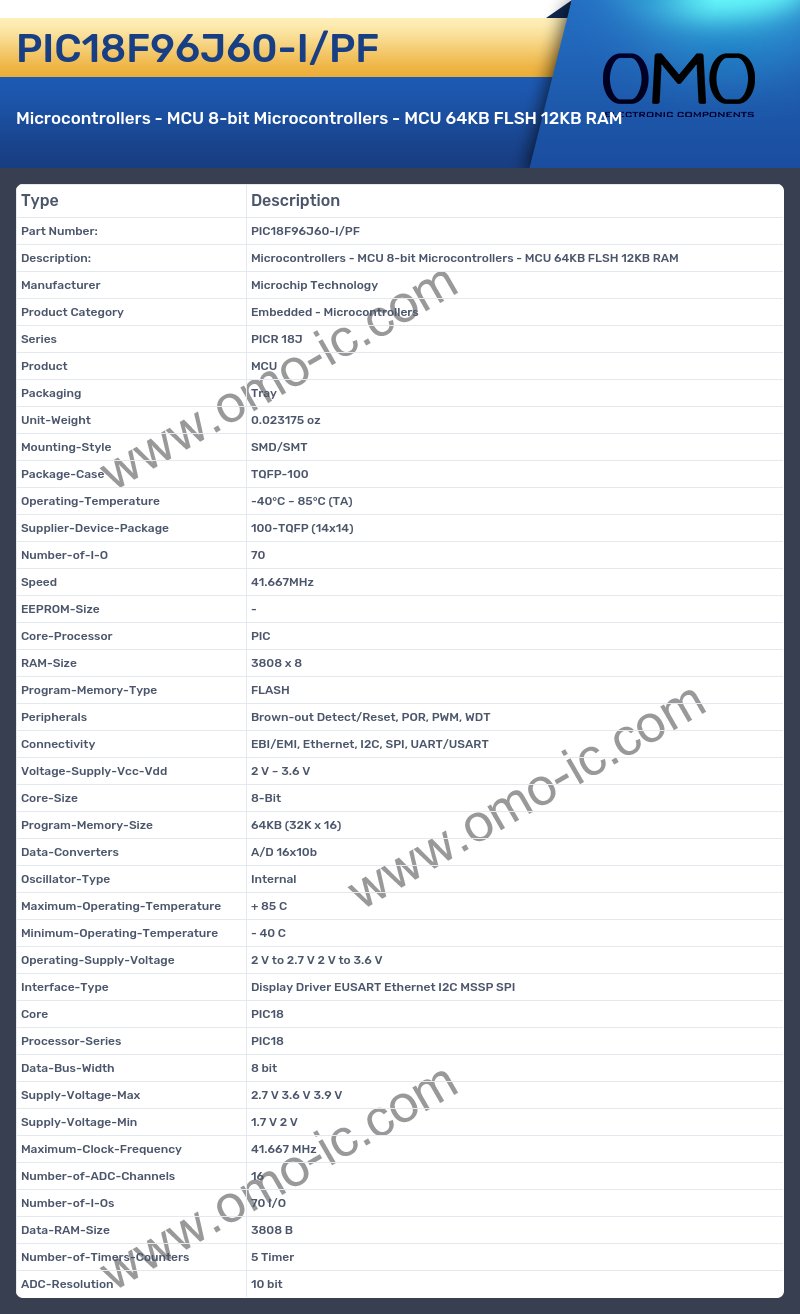

PIC18F96J60-I/PF Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 18J
• Product MCU
• Packaging Tray
• Unit-Weight 0.023175 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-100
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 100-TQFP (14x14)
• Number-of-I-O 70
• Speed 41.667MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 3808 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity EBI/EMI, Ethernet, I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2 V ~ 3.6 V
• Core-Size 8-Bit
• Program-Memory-Size 64KB (32K x 16)
• Data-Converters A/D 16x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 2.7 V 2 V to 3.6 V
• Interface-Type Display Driver EUSART Ethernet I2C MSSP SPI
• Core PIC18
• Processor-Series PIC18
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 2.7 V 3.6 V 3.9 V
• Supply-Voltage-Min 1.7 V 2 V
• Maximum-Clock-Frequency 41.667 MHz
• Number-of-ADC-Channels 16
• Number-of-I-Os 70 I/O
• Data-RAM-Size 3808 B
• Number-of-Timers-Counters 5 Timer
• ADC-Resolution 10 bit
