PIC24F16KA304-E/MV

PIC24F16KA304-E/MV Overview

Product belongs to the PICR XLP 24F series. This product is categorized as MCU Tube is the packaging method for this product SMD/SMT Mounting-Style QFN-40 EP Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 48-UQFN (6x6) This product has 39 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, IrDA, LIN, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. I2C SPI USART interface type Processor Core: PIC This product is powered by the PIC24F Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 8 MHz This product has 38 I/O connections. This product has a 2 kB data RAM size, providing ample storage for complex applications. This product features 5 Timer number of timers and counters. This product utilizes SRAM, providing fast and efficient data storage.

PIC24F16KA304-E/MV Image

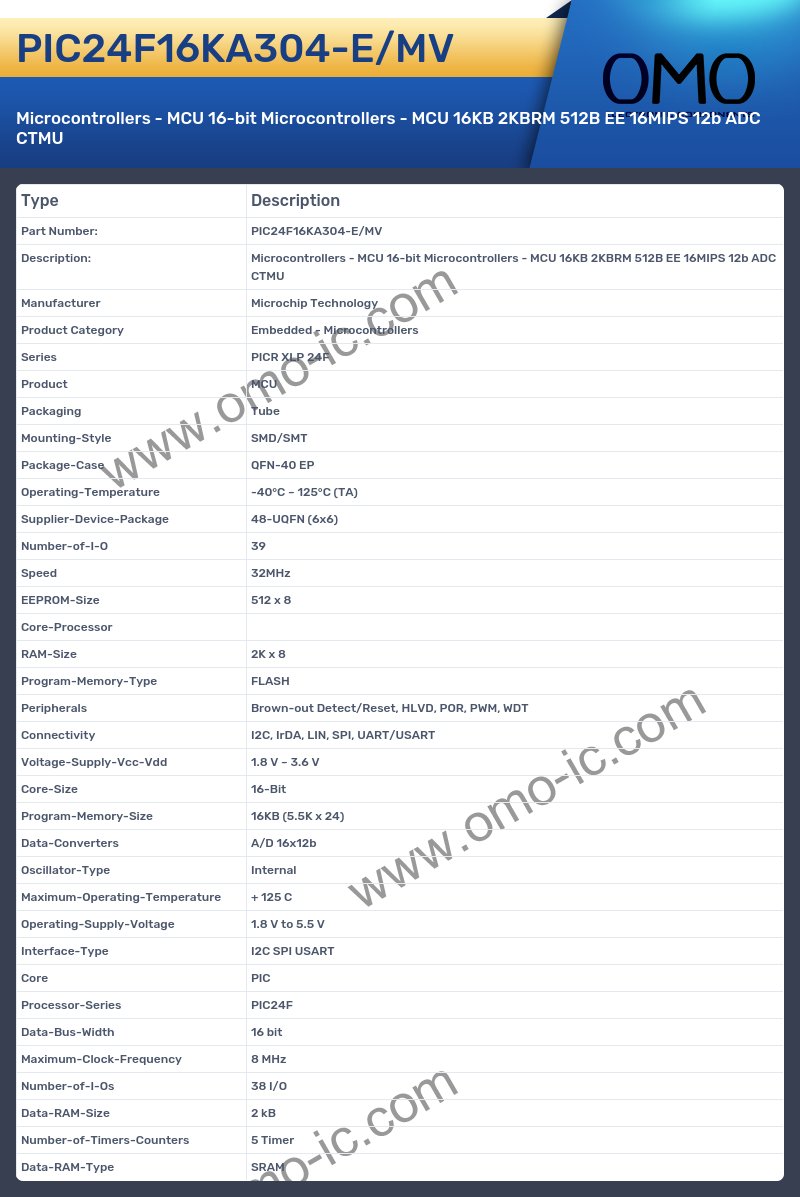

PIC24F16KA304-E/MV Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 24F
• Product MCU
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case QFN-40 EP
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 48-UQFN (6x6)
• Number-of-I-O 39
• Speed 32MHz
• EEPROM-Size 512 x 8
• Core-Processor
• RAM-Size 2K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, HLVD, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 16KB (5.5K x 24)
• Data-Converters A/D 16x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Interface-Type I2C SPI USART
• Core PIC
• Processor-Series PIC24F
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 8 MHz
• Number-of-I-Os 38 I/O
• Data-RAM-Size 2 kB
• Number-of-Timers-Counters 5 Timer
• Data-RAM-Type SRAM
