PT4701A

PT4701A Overview

Product belongs to the Excalibur PT4701 series. Type: Isolated Module Tray is the packaging method for this product 21-SIP Module Operational temperature range: -40°C ~ 85°C Through Hole, Right Angle mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 4 Our product delivers a 1.25A, 1.25A, 1.75A of 50mA for efficient power management. The minimum input voltage is 36V. The 75V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 8V output voltage

PT4701A Image

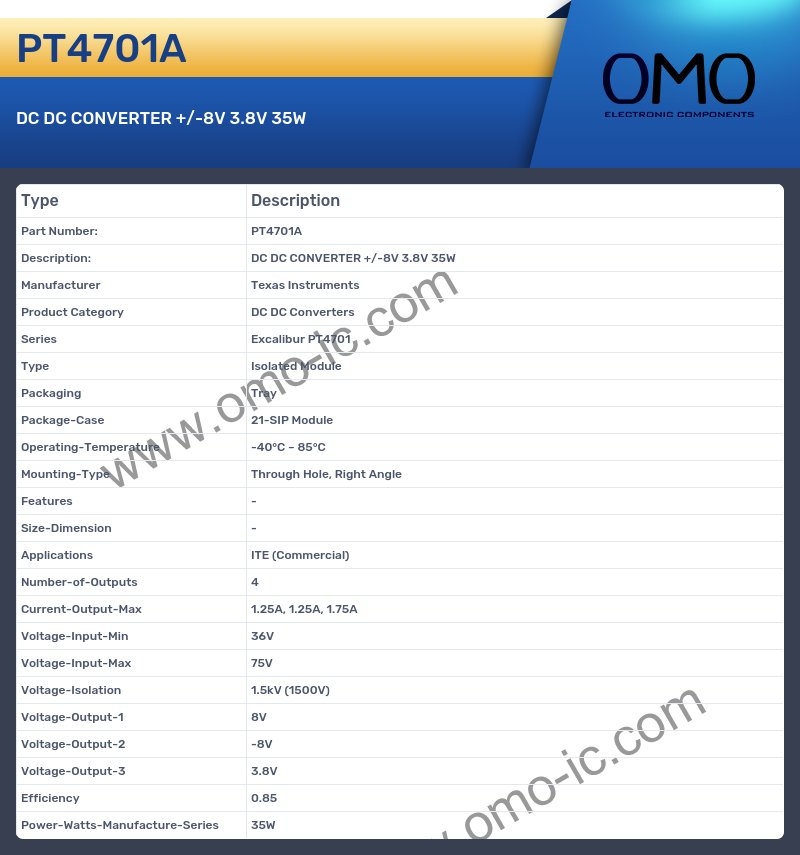

PT4701A Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT4701
• Type Isolated Module
• Packaging Tray
• Package-Case 21-SIP Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole, Right Angle
• Features -
• Size-Dimension -
• Applications ITE (Commercial)
• Number-of-Outputs 4
• Current-Output-Max 1.25A, 1.25A, 1.75A
• Voltage-Input-Min 36V
• Voltage-Input-Max 75V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 8V
• Voltage-Output-2 -8V
• Voltage-Output-3 3.8V
• Efficiency 0.85
• Power-Watts-Manufacture-Series 35W
