PT6686E

PT6686E Overview

Product belongs to the PT6680 series. Type: Non-Isolated PoL Module Tray is the packaging method for this product 14-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 5A of 50mA for efficient power management. The minimum input voltage is 18V. The 36V. This product is designed with - voltage isolation for maximum safety and reliability. 12V output voltage

PT6686E Image

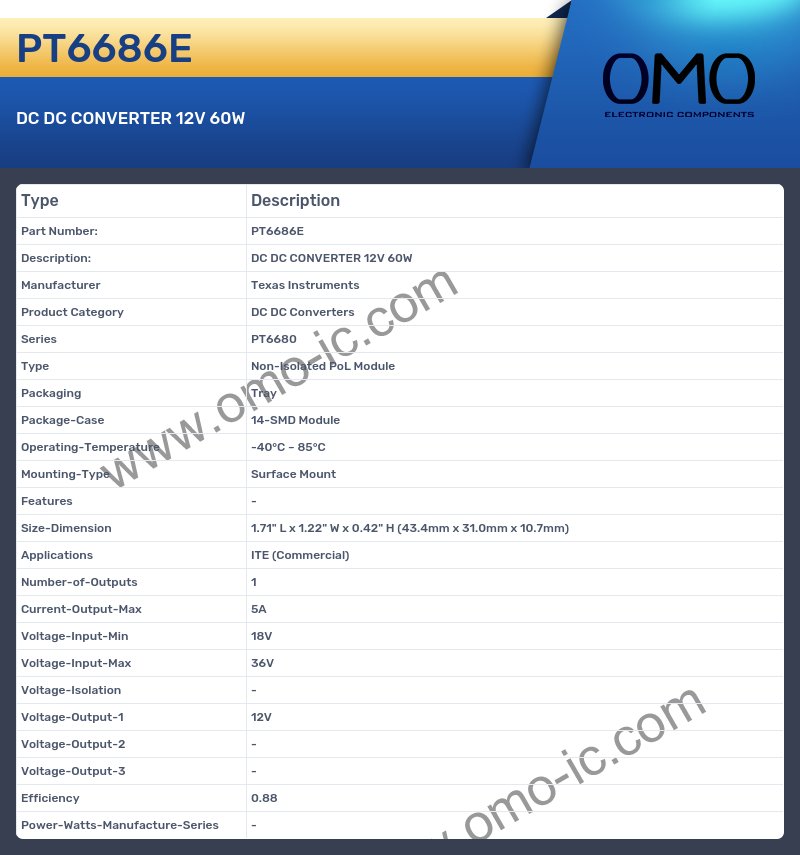

PT6686E Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PT6680
• Type Non-Isolated PoL Module
• Packaging Tray
• Package-Case 14-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features -
• Size-Dimension 1.71" L x 1.22" W x 0.42" H (43.4mm x 31.0mm x 10.7mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 5A
• Voltage-Input-Min 18V
• Voltage-Input-Max 36V
• Voltage-Isolation -
• Voltage-Output-1 12V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.88
• Power-Watts-Manufacture-Series -
