PTH04040WAD Overview

Product belongs to the PTH04040W series. This product is categorized as Non-Isolated / POL Type: Non-Isolated PoL Module Tray is the packaging method for this product Through Hole Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications 20-DIP Module Operational temperature range: -40°C ~ 85°C Through Hole mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 60A of 50mA for efficient power management. The minimum input voltage is 2.95V. The 5.5V. This product is designed with - voltage isolation for maximum safety and reliability. 0.8 ~ 2.5 V output voltage Input Voltage Range: 2.95 V to 5.5 V 0.8 V to 2.5 V output voltage for channel 1 Current output of channel 1 is 60 A . Through Hole Module package-case-size

PTH04040WAD Image

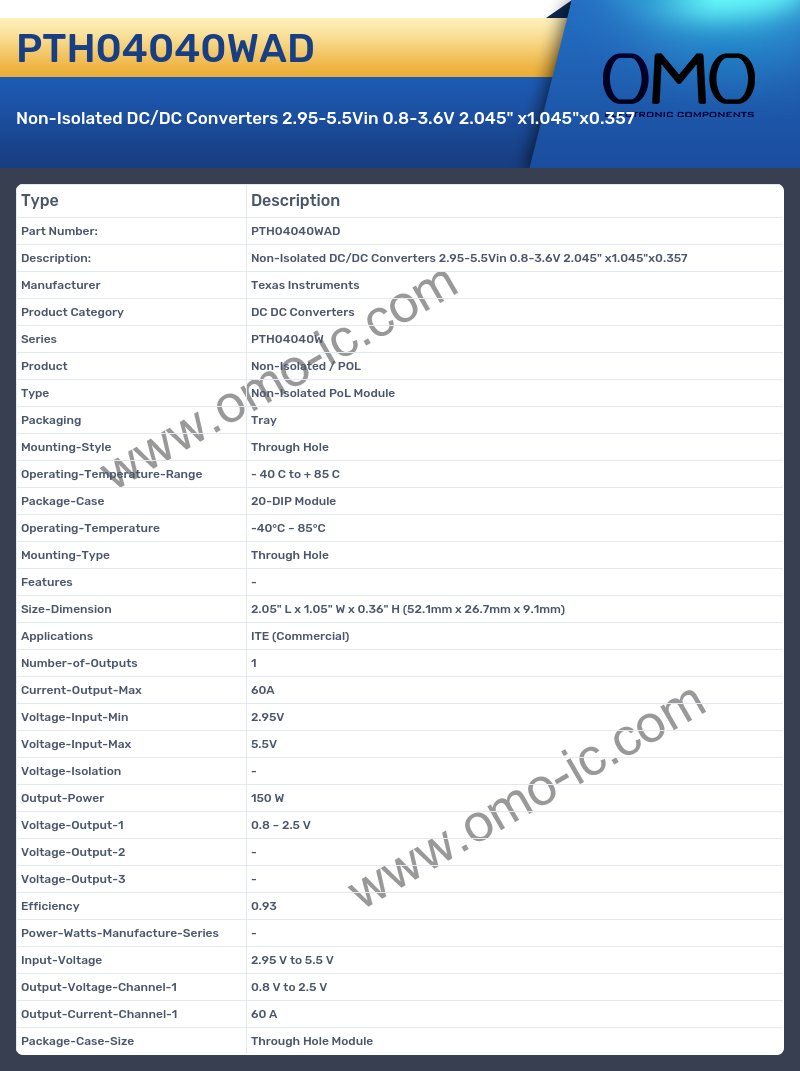

PTH04040WAD Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PTH04040W
• Product Non-Isolated / POL
• Type Non-Isolated PoL Module
• Packaging Tray
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 20-DIP Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Features -
• Size-Dimension 2.05" L x 1.05" W x 0.36" H (52.1mm x 26.7mm x 9.1mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 60A
• Voltage-Input-Min 2.95V
• Voltage-Input-Max 5.5V
• Voltage-Isolation -
• Output-Power 150 W
• Voltage-Output-1 0.8 ~ 2.5 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.93
• Power-Watts-Manufacture-Series -
• Input-Voltage 2.95 V to 5.5 V
• Output-Voltage-Channel-1 0.8 V to 2.5 V
• Output-Current-Channel-1 60 A
• Package-Case-Size Through Hole Module
