SN65EL16D

SN65EL16D Overview

Product belongs to the SN65EL16 series. Type: Receiver Tube is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 The ECL/NECL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: ECL Voltage Supply Range: 4.2 V ~ 5.7 V Supplier device package: 8-SOIC This product has a 0/1 number of drivers and receivers. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 23 mA is 92 nA. Maximum supply voltage of 5.7 V Minimum supply voltage is 4.2 V

SN65EL16D Image

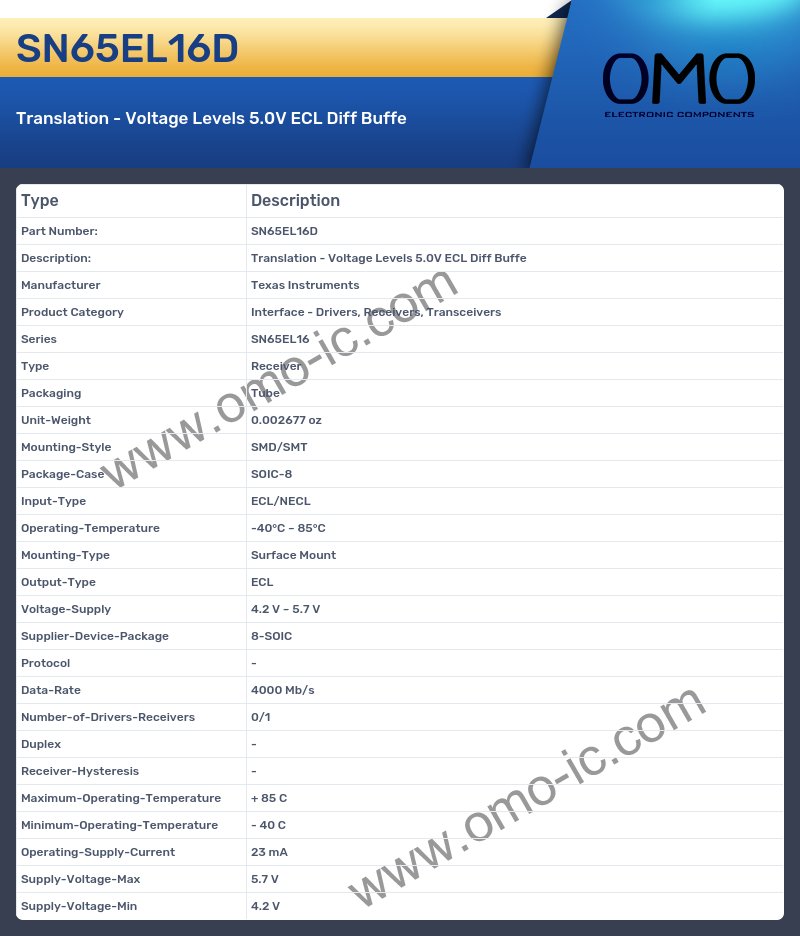

SN65EL16D Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN65EL16
• Type Receiver
• Packaging Tube
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type ECL/NECL
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type ECL
• Voltage-Supply 4.2 V ~ 5.7 V
• Supplier-Device-Package 8-SOIC
• Protocol -
• Data-Rate 4000 Mb/s
• Number-of-Drivers-Receivers 0/1
• Duplex -
• Receiver-Hysteresis -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 23 mA
• Supply-Voltage-Max 5.7 V
• Supply-Voltage-Min 4.2 V
