SN74ABT16640DLR

SN74ABT16640DLR Overview

Product belongs to the 74ABT series. This product is categorized as Standard Transceiver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.021175 oz SMD/SMT Mounting-Style SSOP-48 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is Depending on the logic level. Number of channels: 16 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 48-SSOP 2 is 8. 2 element Transceiver, Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting Maximum supply current: 32 mA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ABT logic type 4.3 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 32 mA 64 mA low-level output current

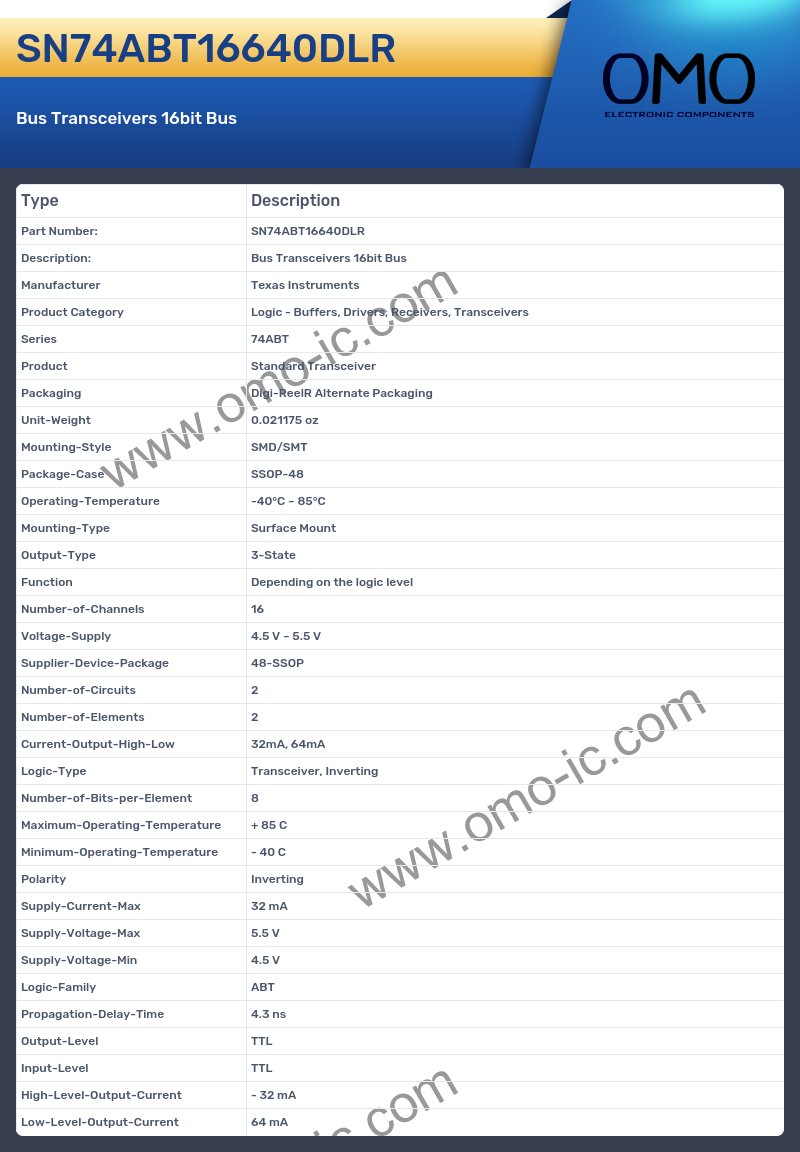

SN74ABT16640DLR Image

SN74ABT16640DLR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ABT
• Product Standard Transceiver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.021175 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-48
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Depending on the logic level
• Number-of-Channels 16
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 48-SSOP
• Number-of-Circuits 2
• Number-of-Elements 2
• Current-Output-High-Low 32mA, 64mA
• Logic-Type Transceiver, Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting
• Supply-Current-Max 32 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ABT
• Propagation-Delay-Time 4.3 ns
• Output-Level TTL
• Input-Level TTL
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 64 mA
