| Mfr. #: | SN74AC14D |
|---|---|
| 製造商: | Texas Instruments |
| 描述: | Inverters Hex Schmitt-Trigge |
| 生命週期: | 製造商新產品 |
| 數據表: | SN74AC14D 數據表 |
Product belongs to the 74AC series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOIC-14 The CMOS for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SOIC 6 is 8. 2μA maximum quiescent current. Inverter logic type 0.5 V ~ 1.1 V is a Logic-Level-Low; 2.2 V ~ 3.9 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 6 V Minimum supply voltage is 2 V AC logic type 11 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

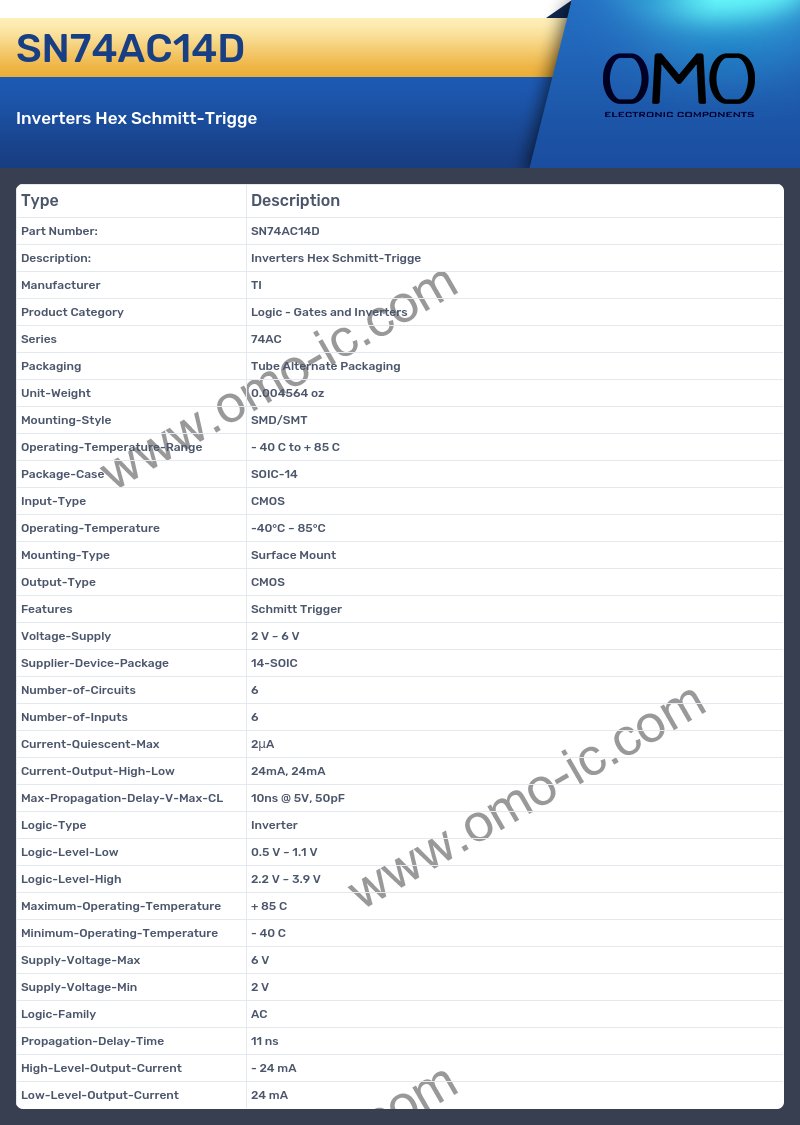

SN74AC14D Specifications
