SN74ACT1284DBR

SN74ACT1284DBR Overview

Product belongs to the 74ACT series. Type: Bus Interface Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.005527 oz SMD/SMT Mounting-Style SSOP-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Supplier device package: 20-SSOP 7 bits IEEE STD 1284 Translation Transceiver logic type The 4.5 V ~ 5.5 V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5.5 V supply voltage for reliable performance. 1.5 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.7 V

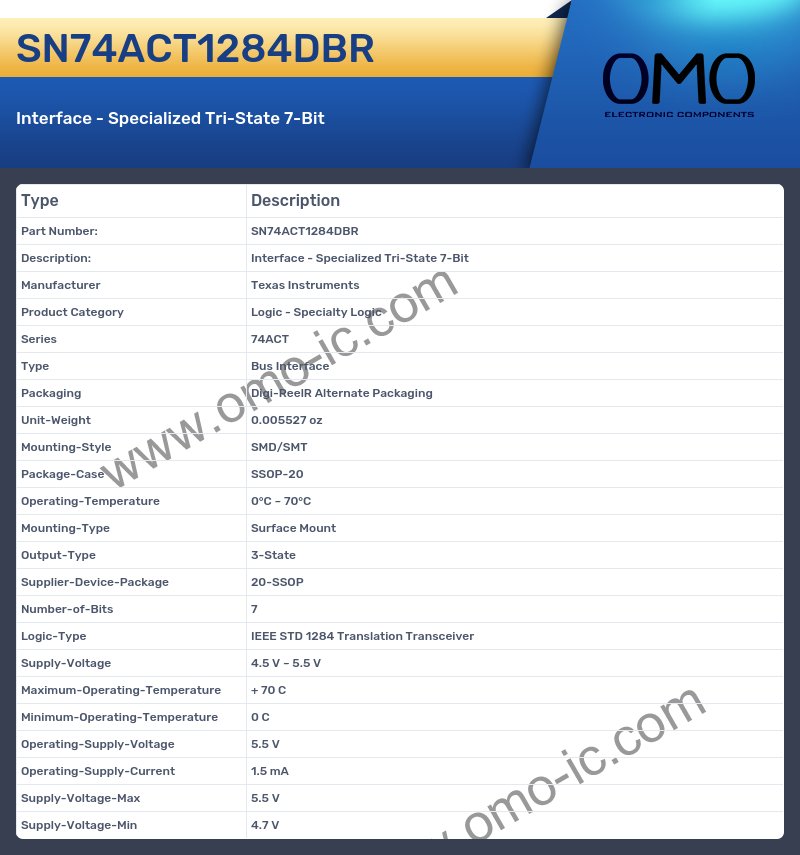

SN74ACT1284DBR Image

SN74ACT1284DBR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Specialty Logic
• Series 74ACT
• Type Bus Interface
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.005527 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Supplier-Device-Package 20-SSOP
• Number-of-Bits 7
• Logic-Type IEEE STD 1284 Translation Transceiver
• Supply-Voltage 4.5 V ~ 5.5 V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5.5 V
• Operating-Supply-Current 1.5 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.7 V
