SN74ACT245DW

SN74ACT245DW Overview

Product belongs to the 74ACT series. This product is categorized as Standard Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is Bus Transceiver. Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SOIC 8 is 8. 1 element Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 4 uA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 9 ns is 23 microseconds. CMOS is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 24 mA 24 mA low-level output current

SN74ACT245DW Image

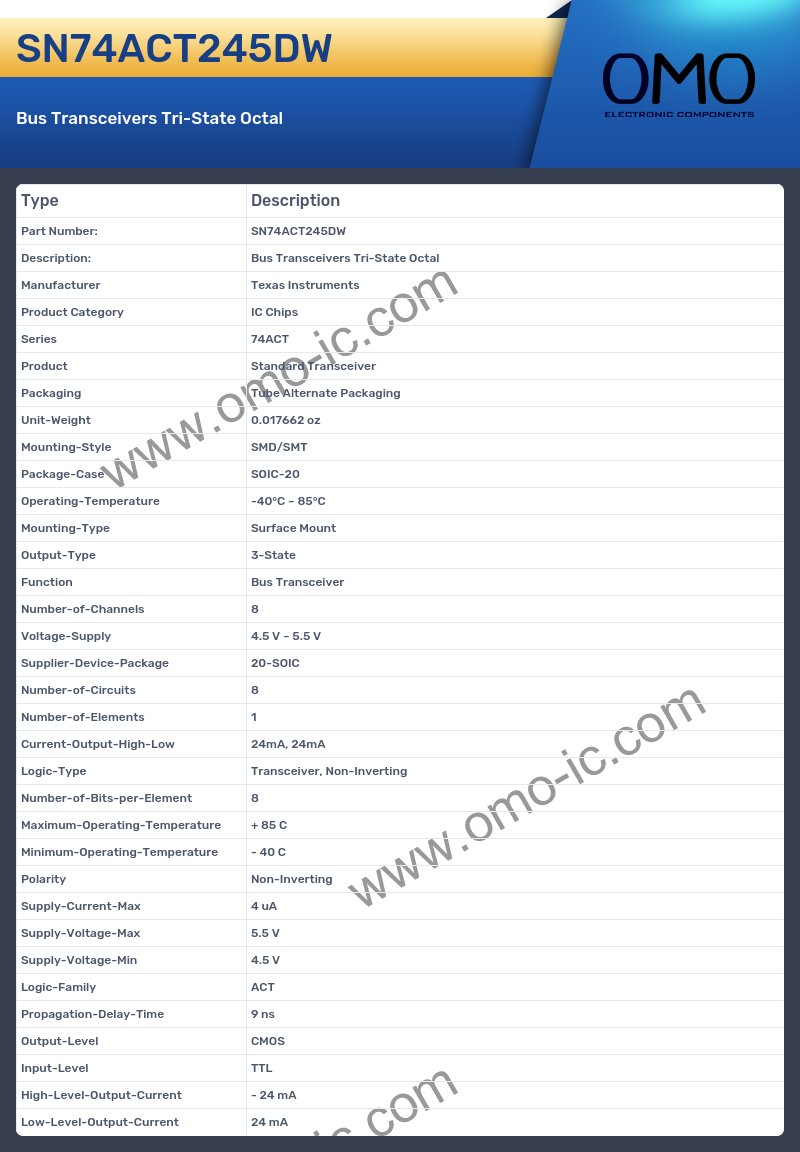

SN74ACT245DW Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series 74ACT
• Product Standard Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Bus Transceiver
• Number-of-Channels 8
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 4 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 9 ns
• Output-Level CMOS
• Input-Level TTL
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
